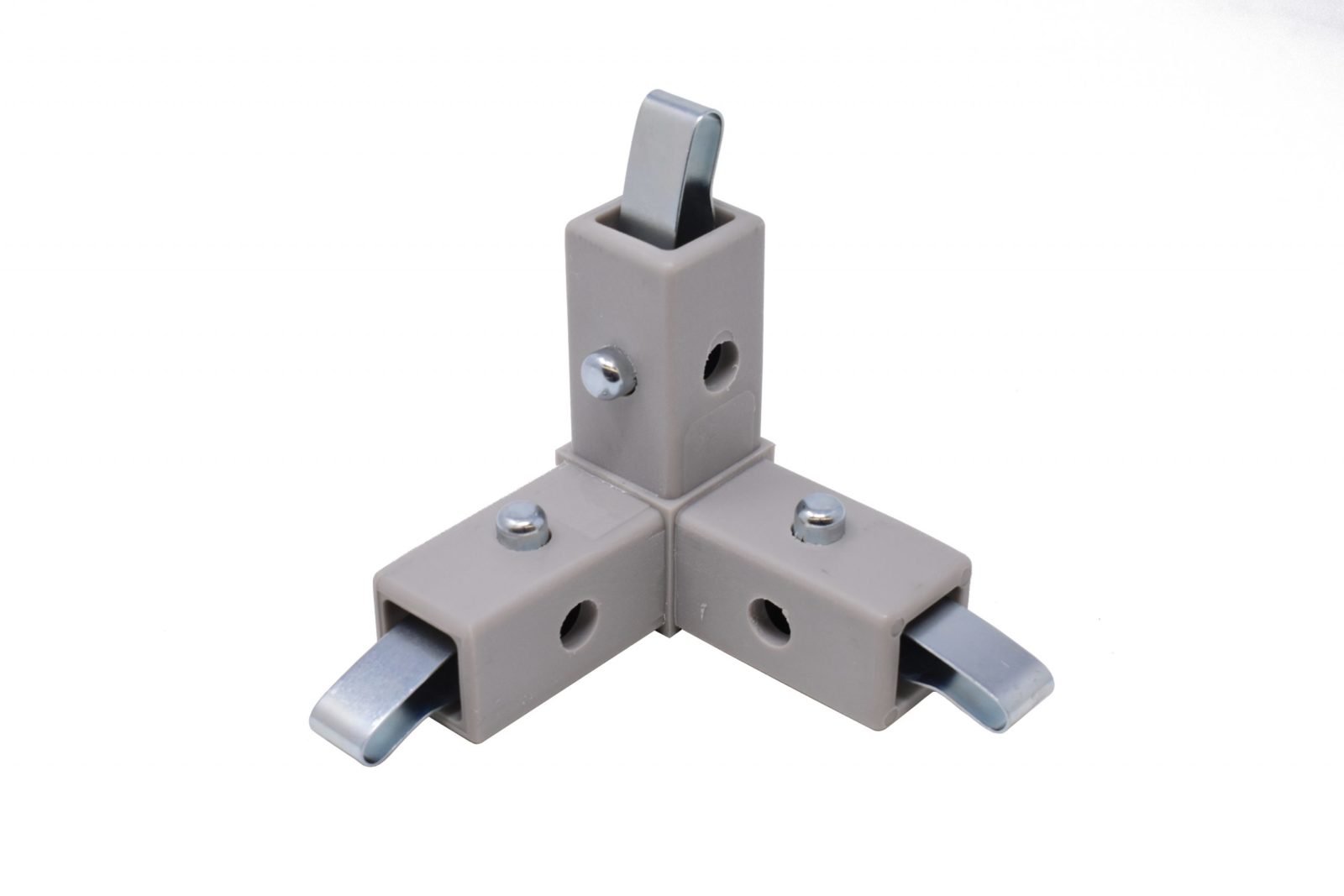

200-309-QR 3-Way Gray Corner Connector, Quick Release

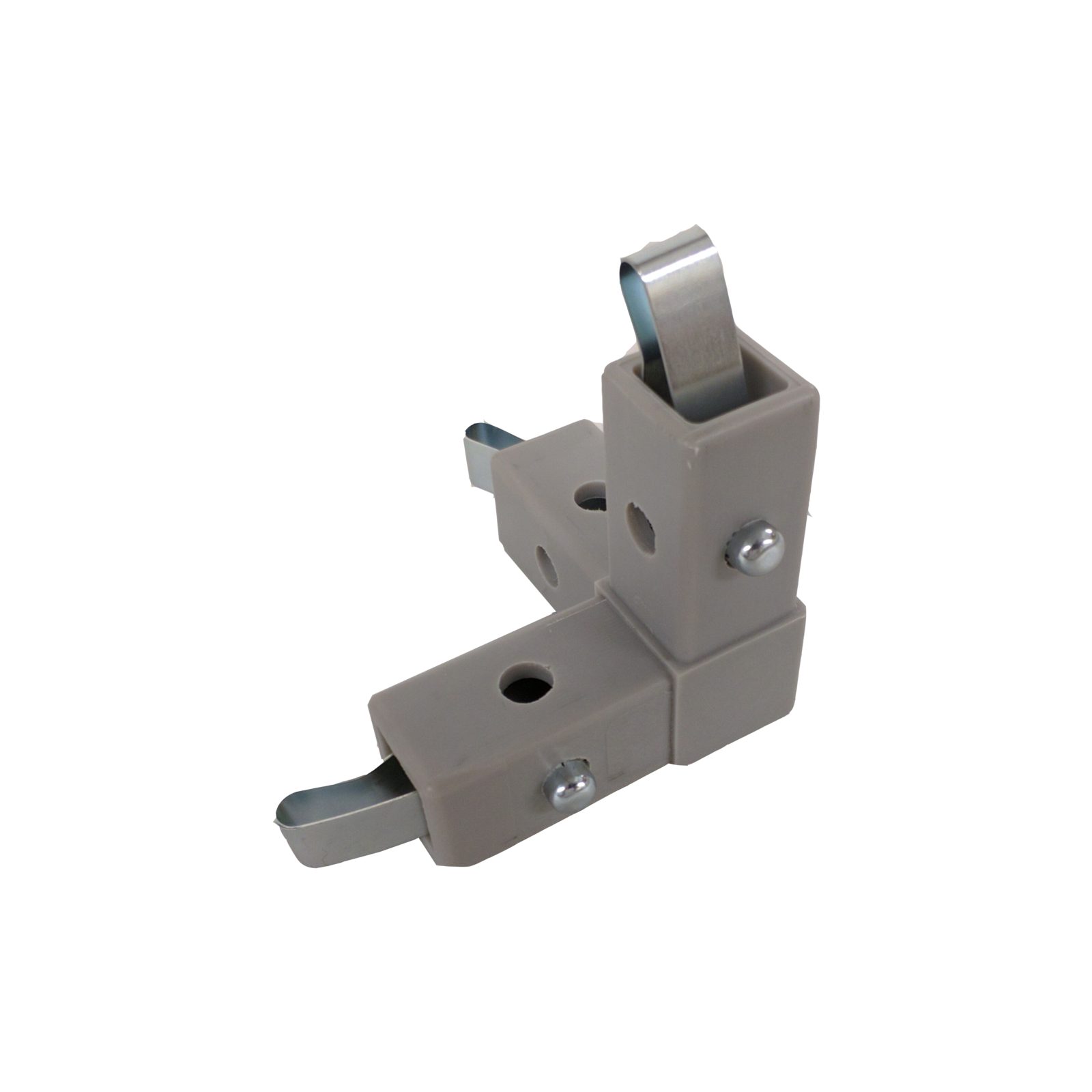

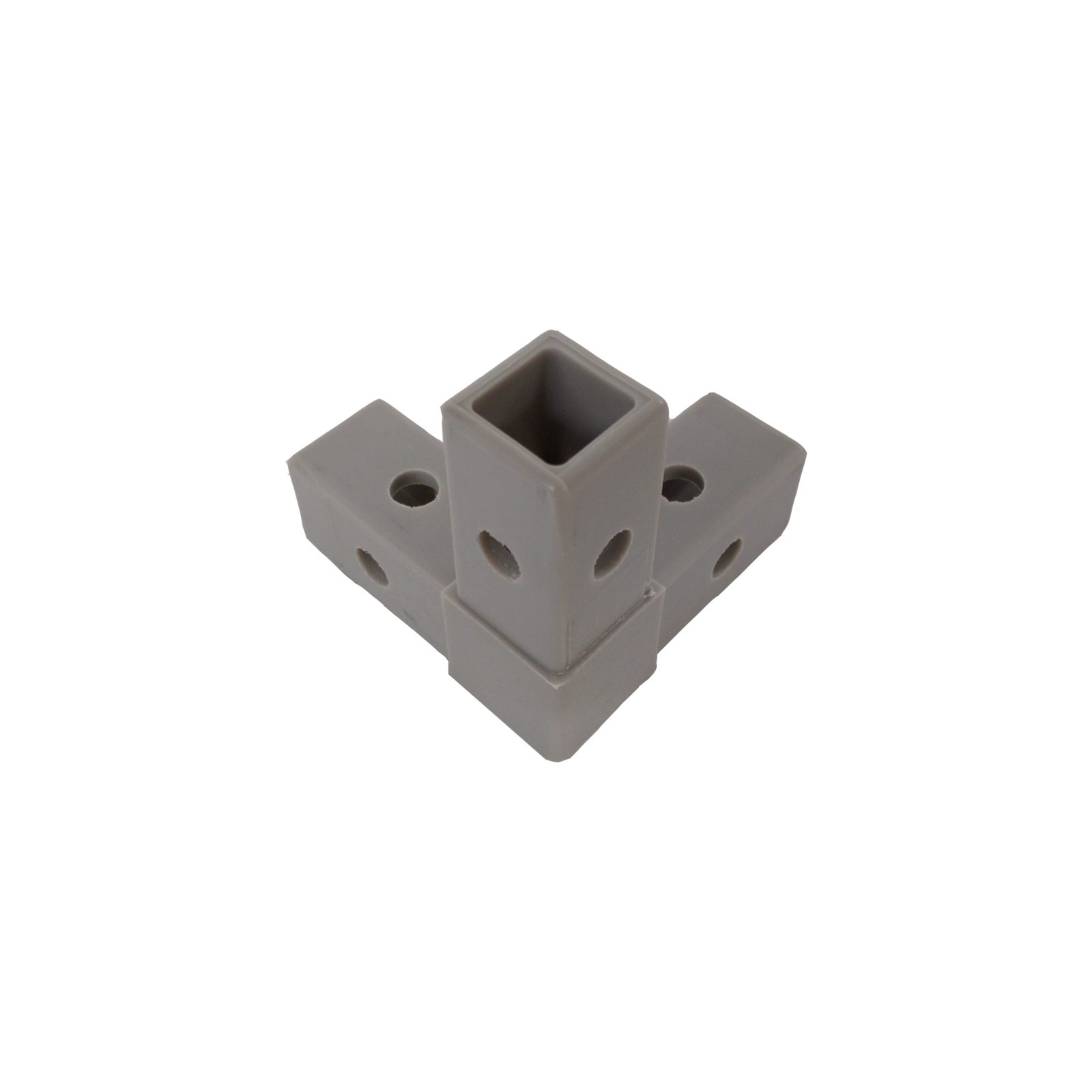

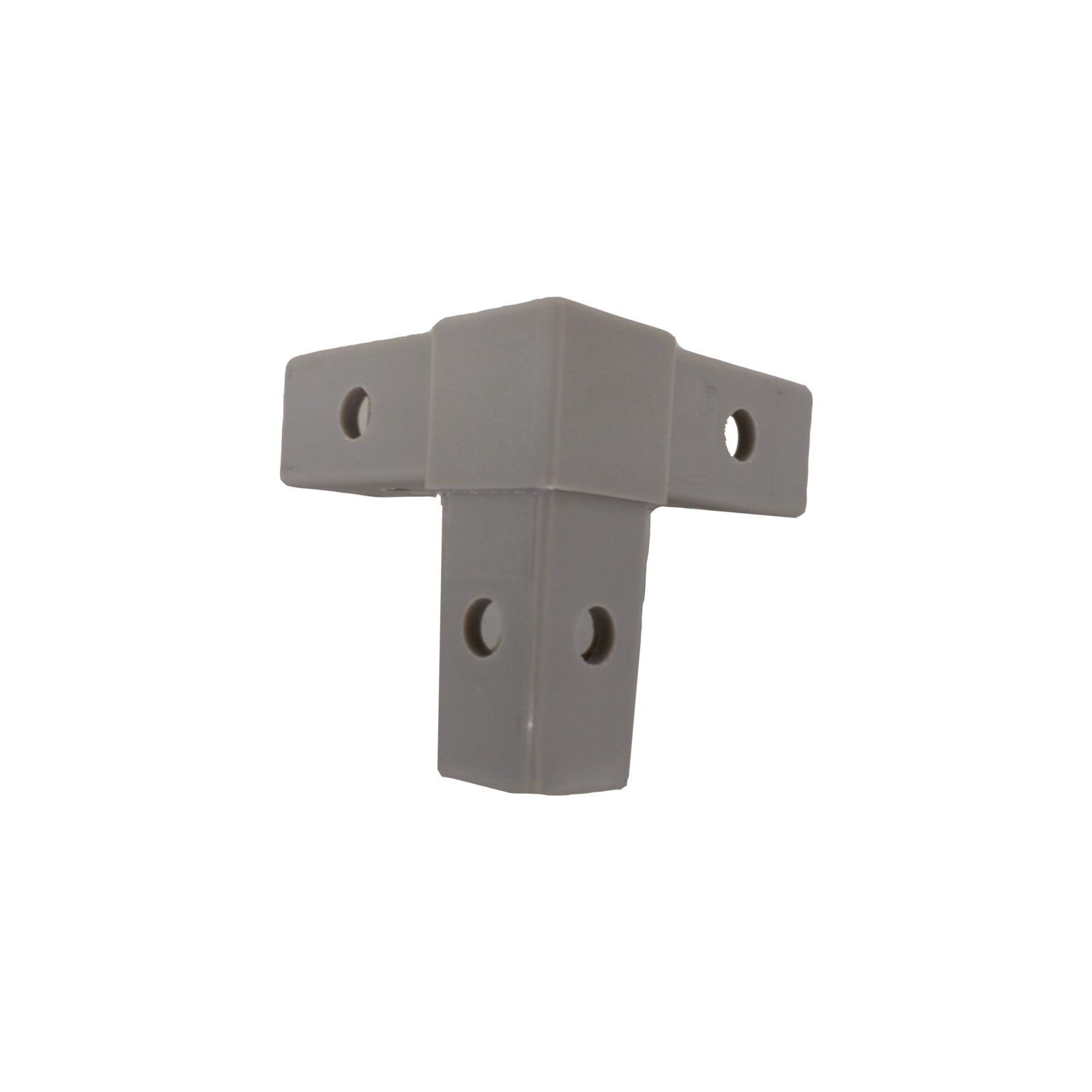

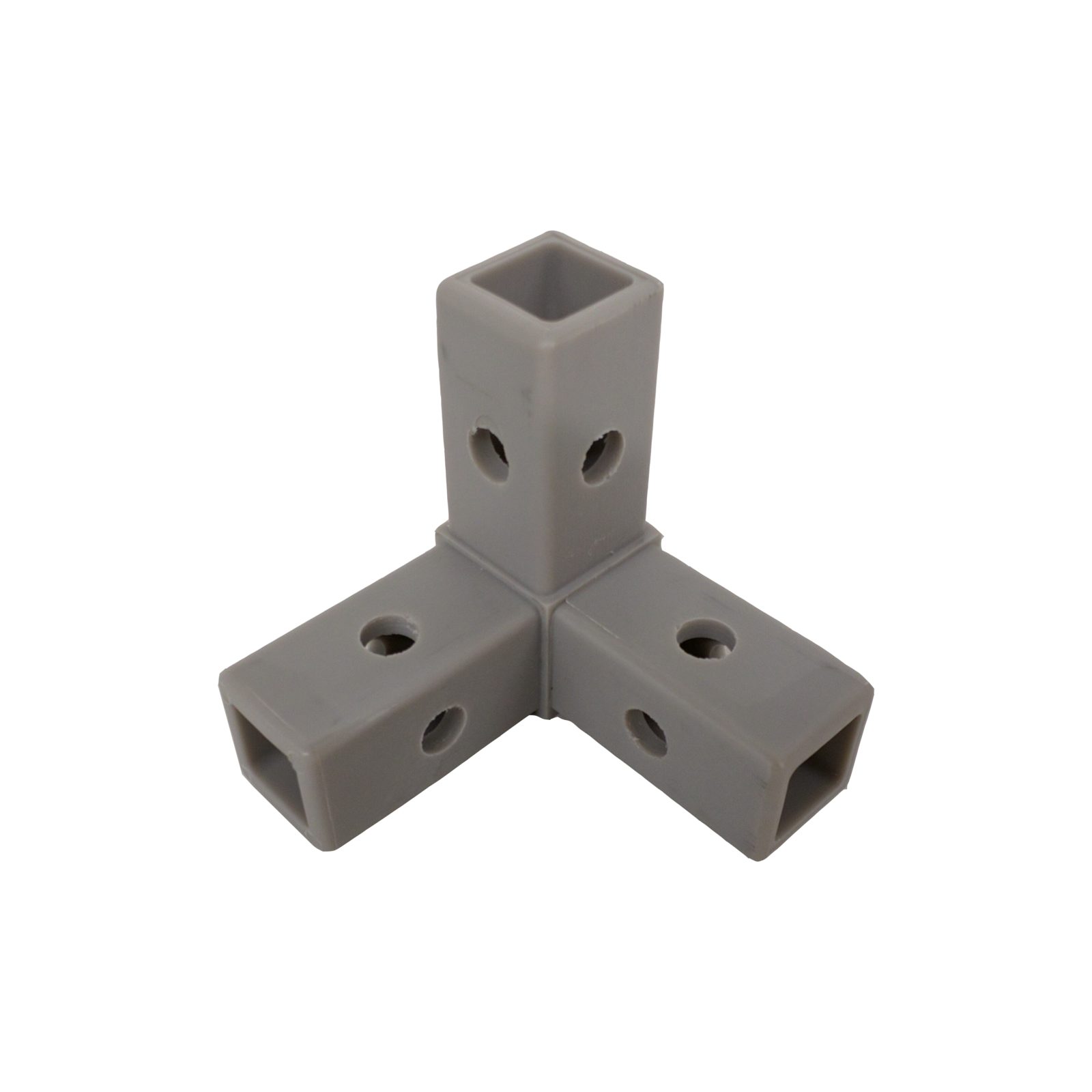

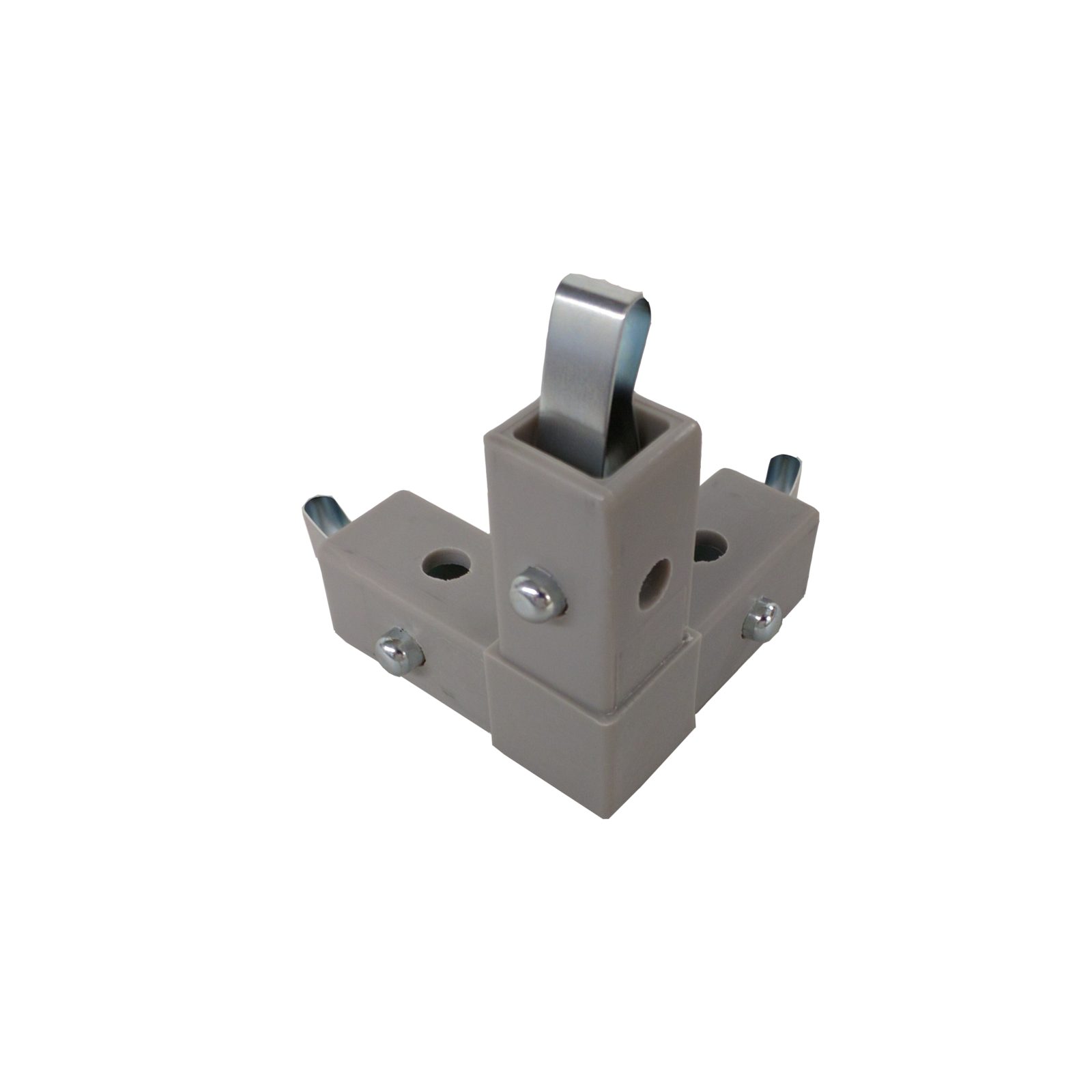

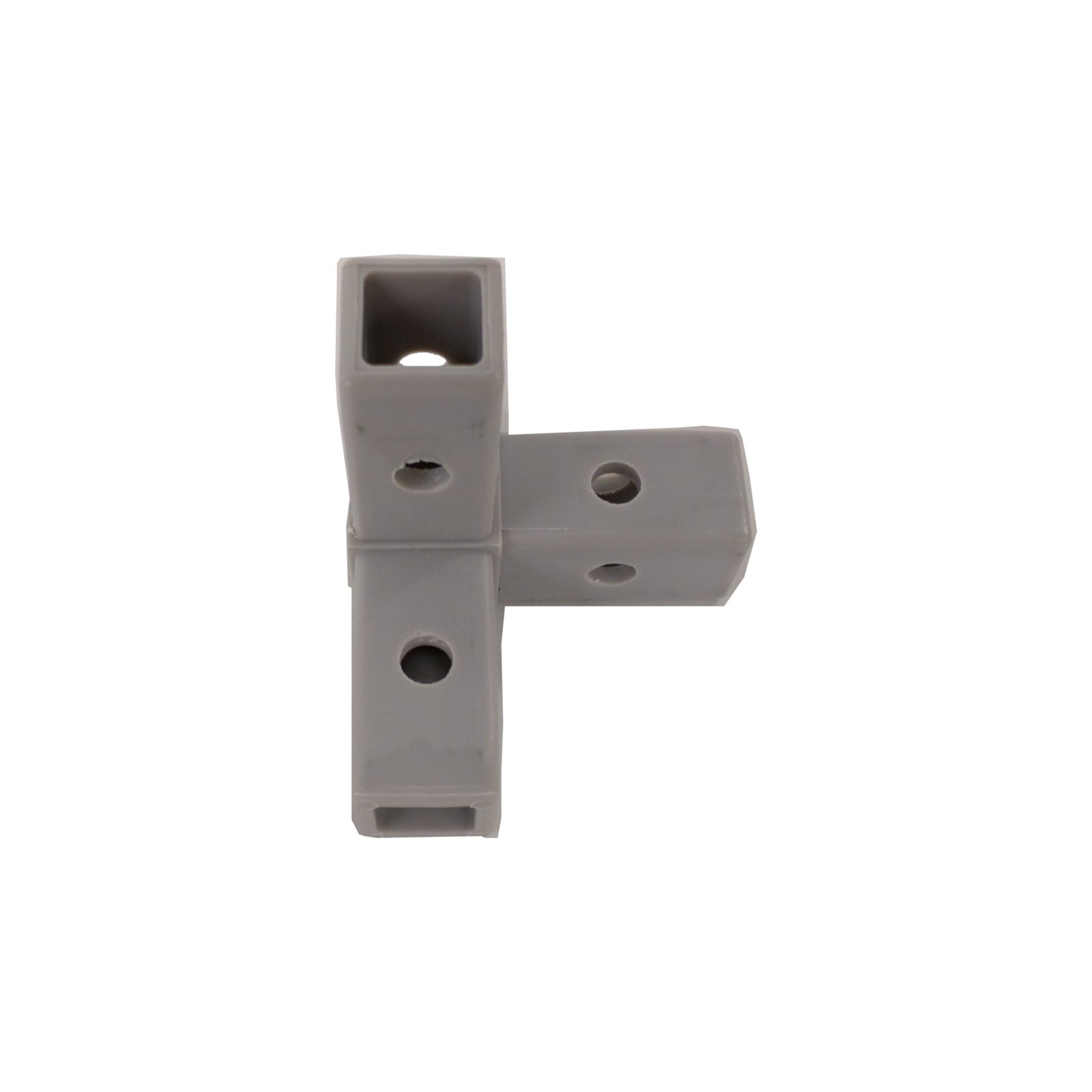

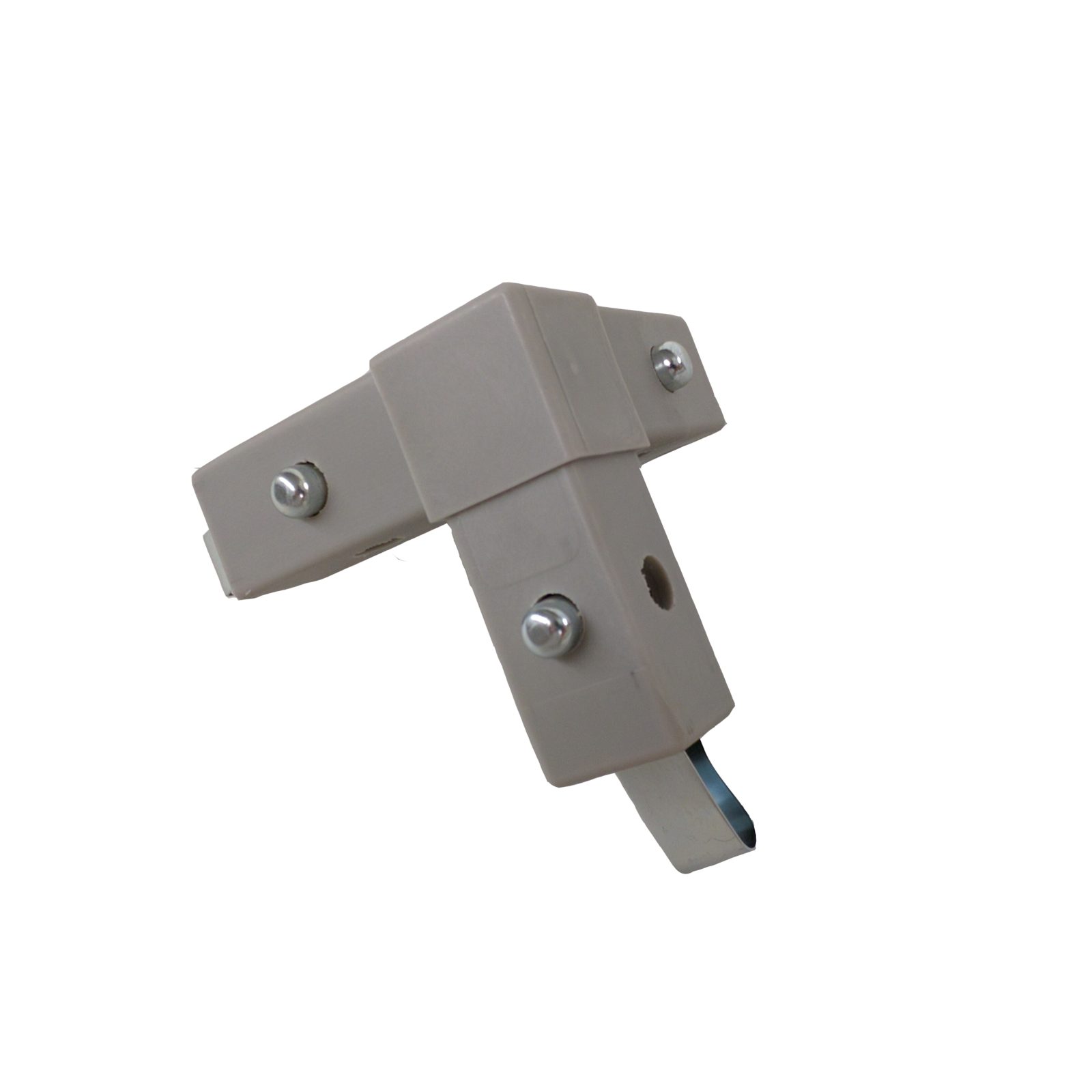

200-309-QR 3-Way Gray Composite Quick-Release Corner Connector - Image 2
200-309-QR 3-Way Gray Composite Quick-Release Corner Connector - Image 3
200-309-QR 3-Way Gray Composite Quick-Release Corner Connector - Image 4
200-309-QR 3-Way Gray Composite Quick-Release Corner Connector - Image 5
200-309-QR 3-Way Gray Composite Quick-Release Corner Connector - Image 6
200-309-QR 3-Way Gray Composite Quick-Release Corner Connector - Image 7
200-309-QR 3-Way Gray Composite Quick-Release Corner Connector - Image 8

200-309-QR 3-Way Gray Composite Quick-Release Corner Connector

$8.20

SKU: 200-309-QR Categories: ,

Product Description

3-Way Gray Quick-Release Corner Connector for Assembly and Disassembly

33% Glass Fiber Reinforcement

Includes: (3) Snap-Lock Inserts

Weight: .15 lbs.

Additional Information

Weight 0.7 lbs
Dimensions 2.6 × 2.6 × 2.6 in

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

100-309-C-EL.eAsm
100-309-C-EL.igs
100-309-C-EL.stp
100-309-C-EL.x_b
100-309-C-EL.x_t
100-309-C-EL.dwg

200-309-QR 3-Way Gray Composite Quick-Release Corner Connector
