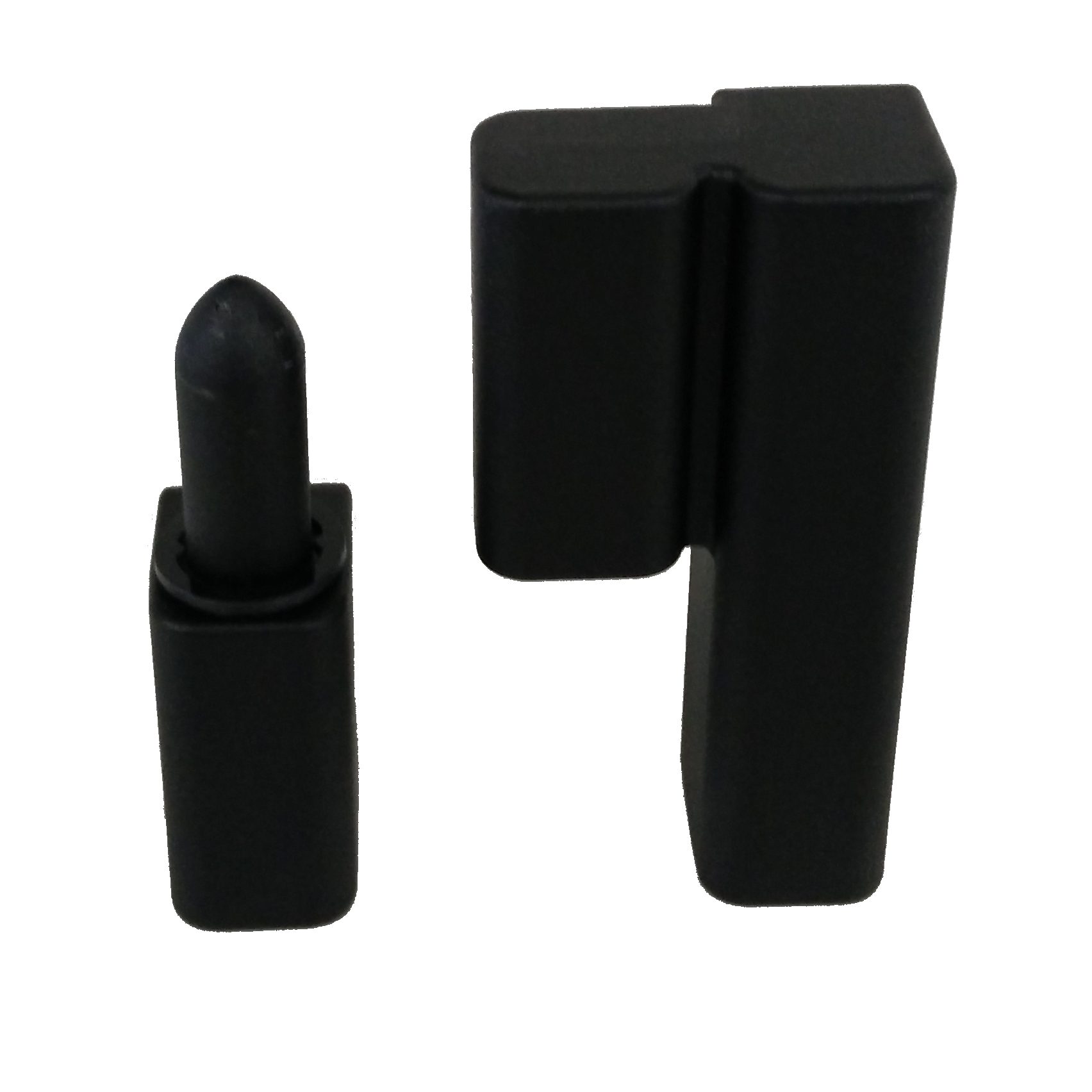

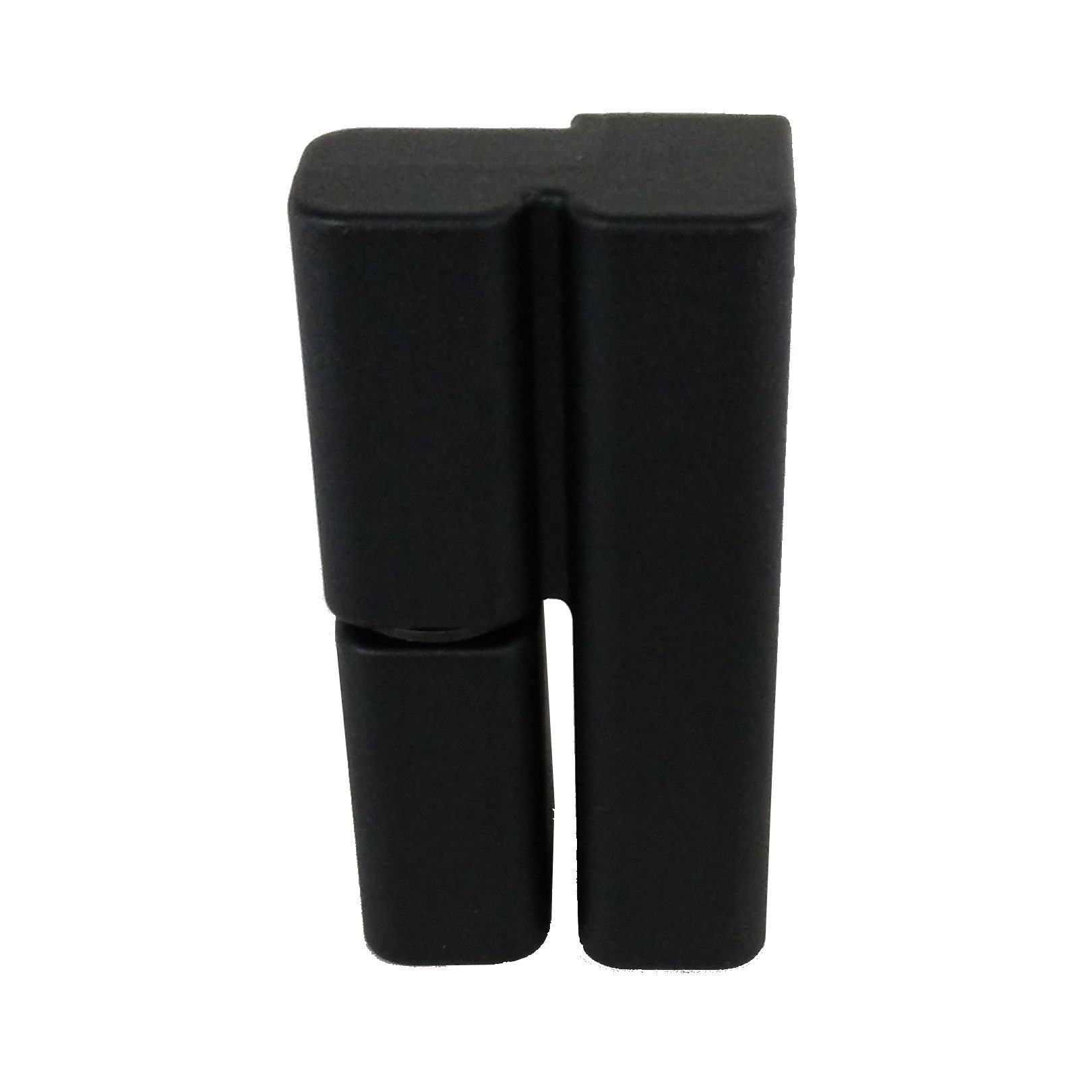

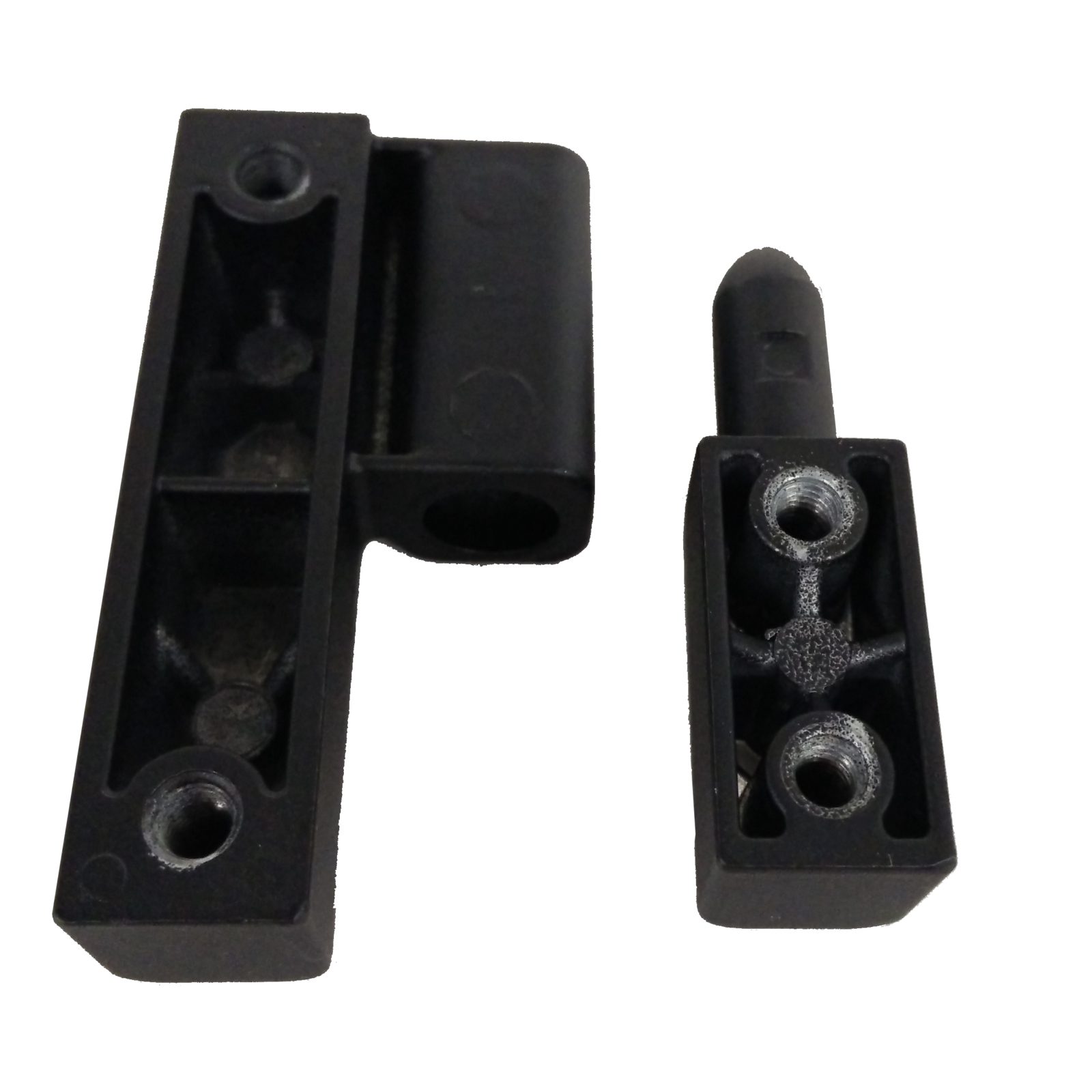

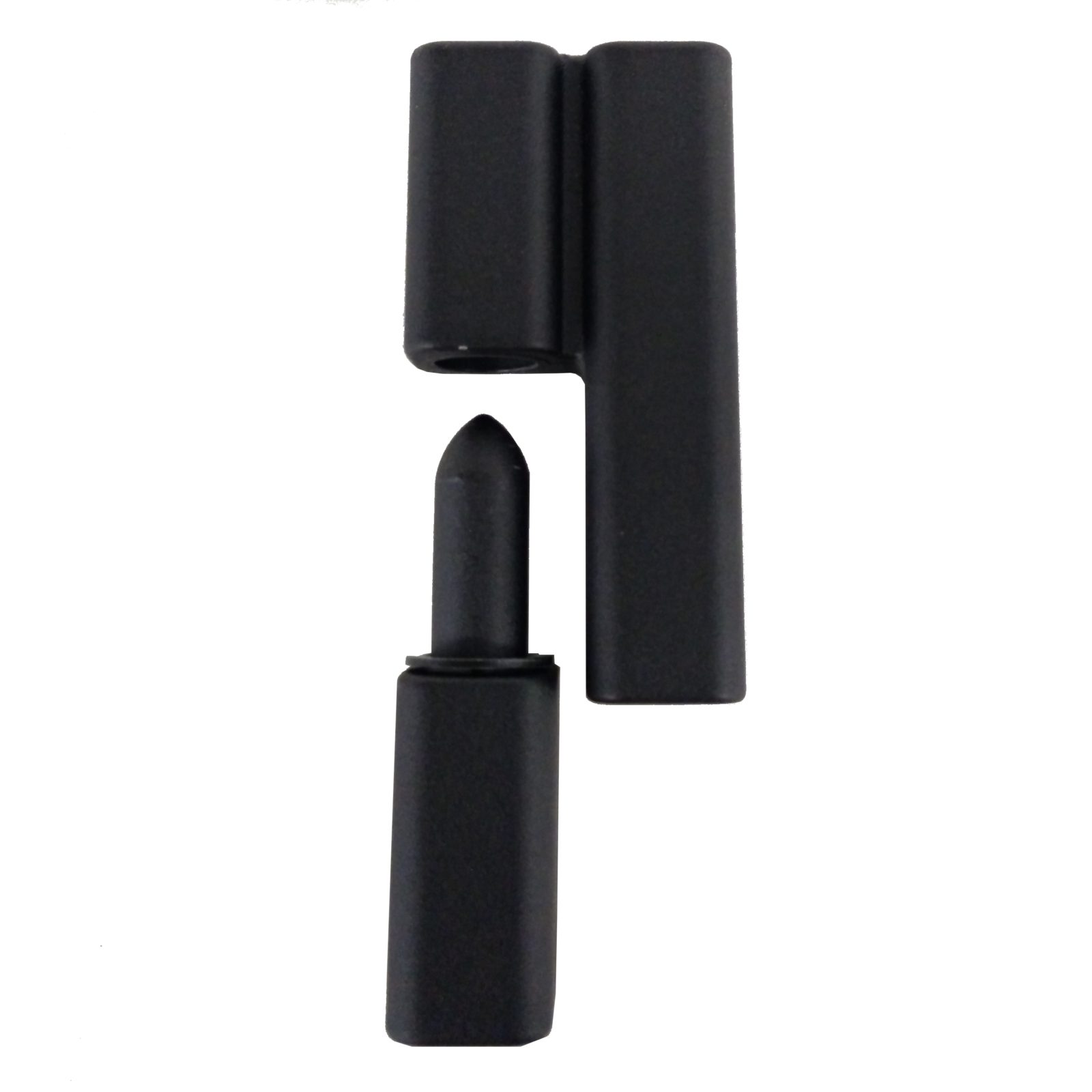

100-344 Metal Lift-Off Hinge (Right Hand)

$16.00

SKU: 100-344 Categories: ,

Product Description

Material: Die-Cast Zinc.

Finish: Black Powder Coat.

Mounting Thread Size: 10-32

Weight: .5 lbs.

Additional Information

Weight 0.5 lbs
Dimensions 2 × 2 × 0.5 in

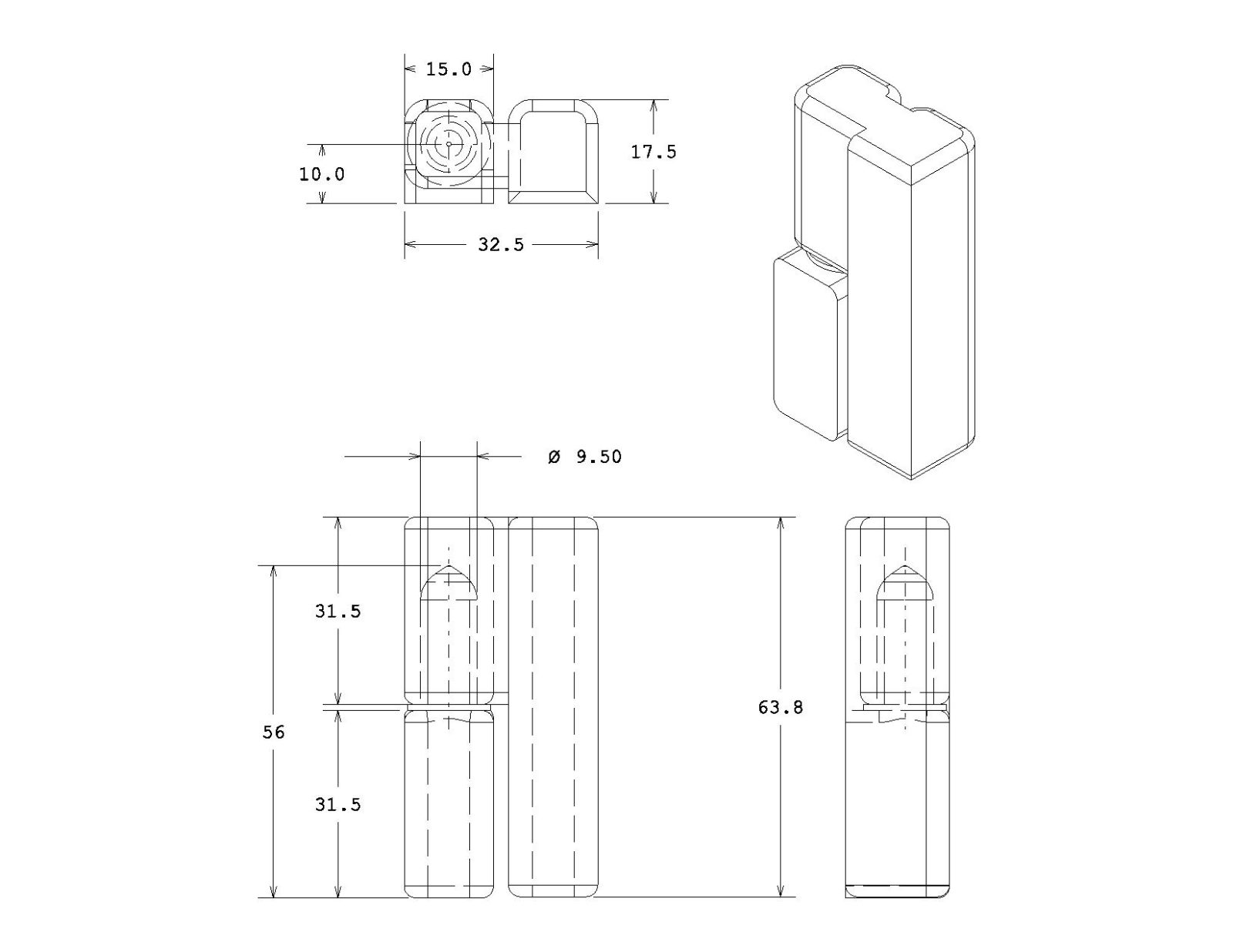

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

100-100-98in0001

100-344.eAsm
100-344.igs
100-344.stp
100-344.x_b
100-344.x_t
100-344.dwg
