Product Description

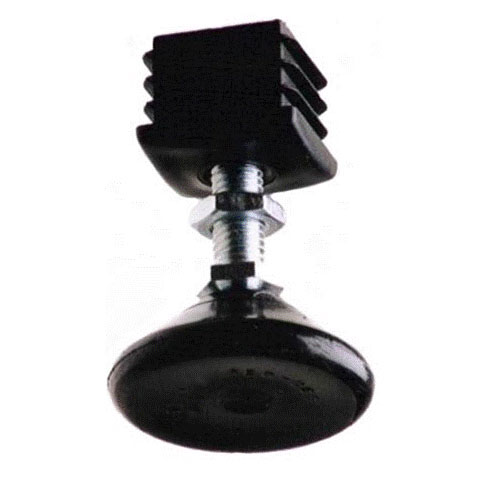

Adjustable Foot with Plastic Insert for Square Tube
Zinc Plated, M8 x 1.25 Thread
Nylon Foot
Max load per unit: 200 lbs.
SKU 100-328
Assembles with Aluminum Extrusions, Steel Tube, Stainless Steel Tube
Levelling Foot with Plastic Insert for Square Tube
$7.50
Assembles with Aluminum Extrusions, Steel Tube, Stainless Steel Tube
Additional Information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |

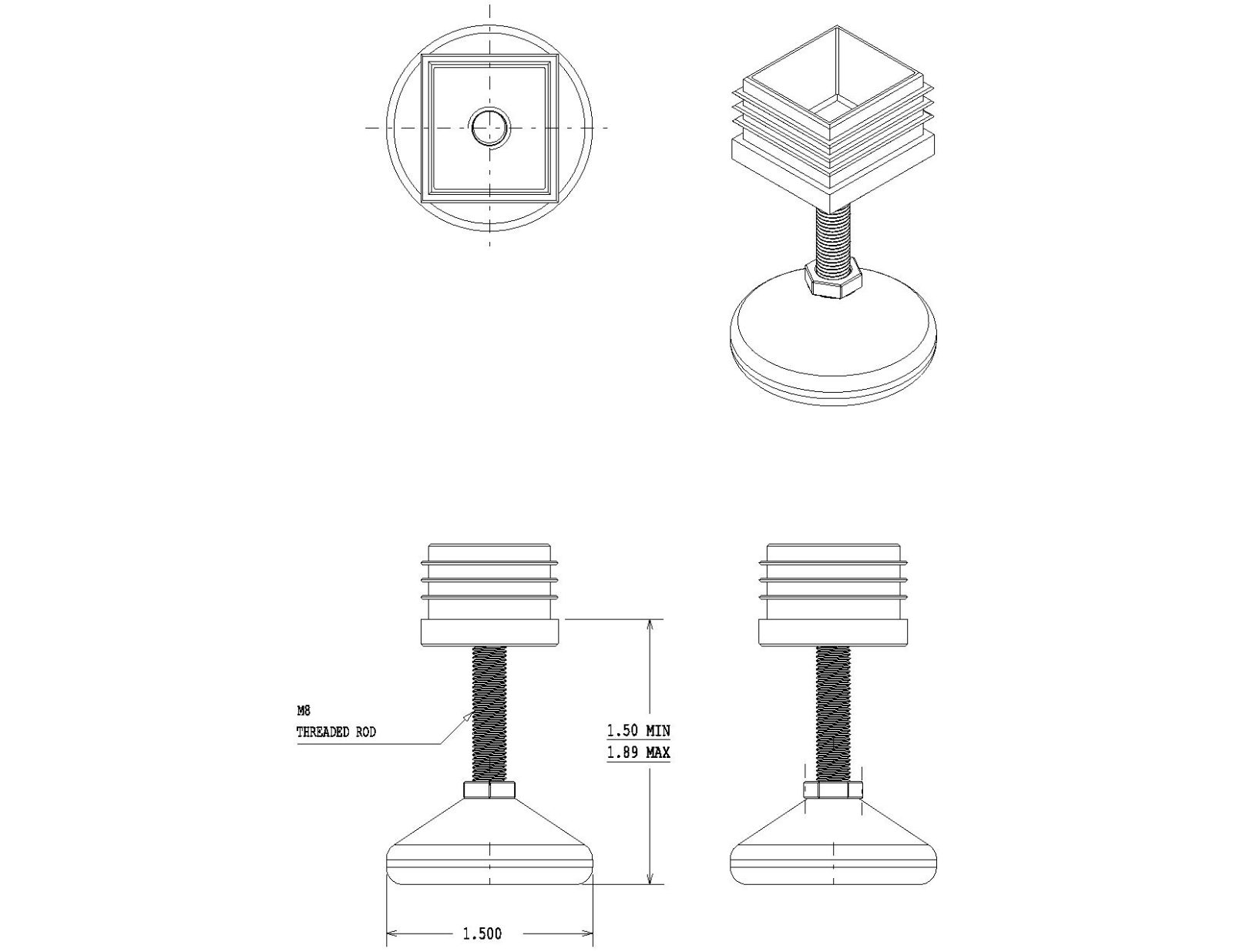

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.
100-328.eAsm
100-328.igs
100-328.stp
100-328.x_b
100-328.x_t
100-328.dwg
