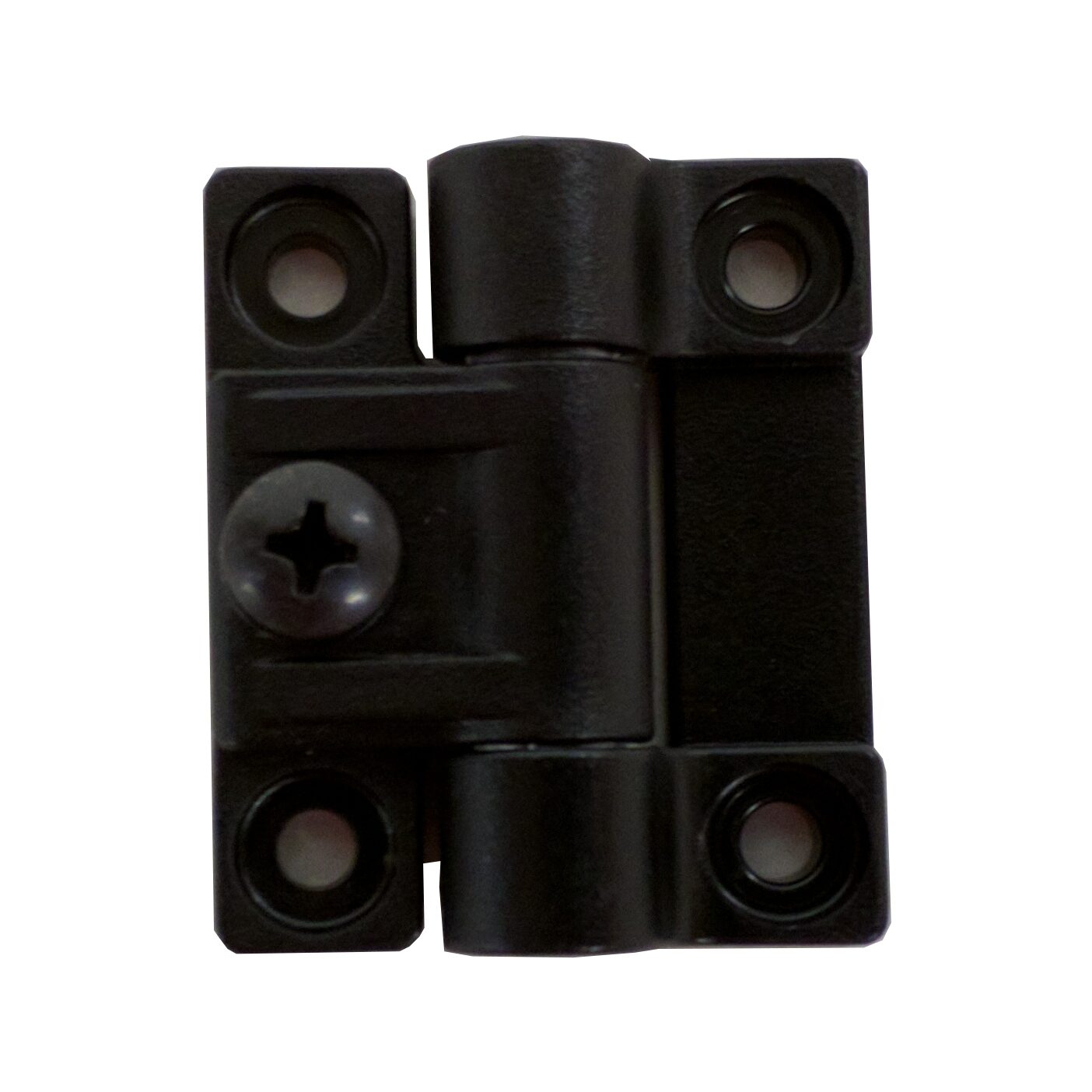

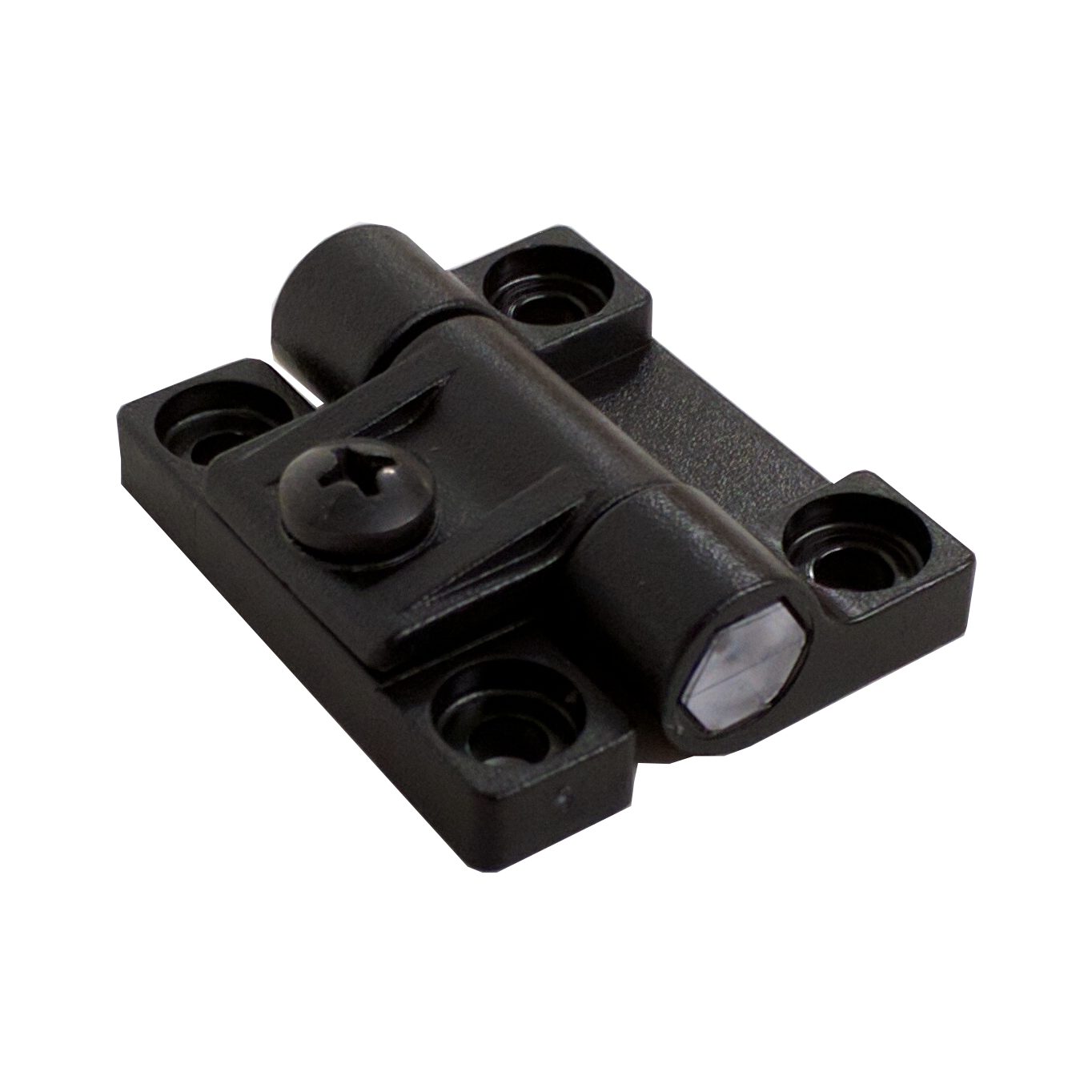

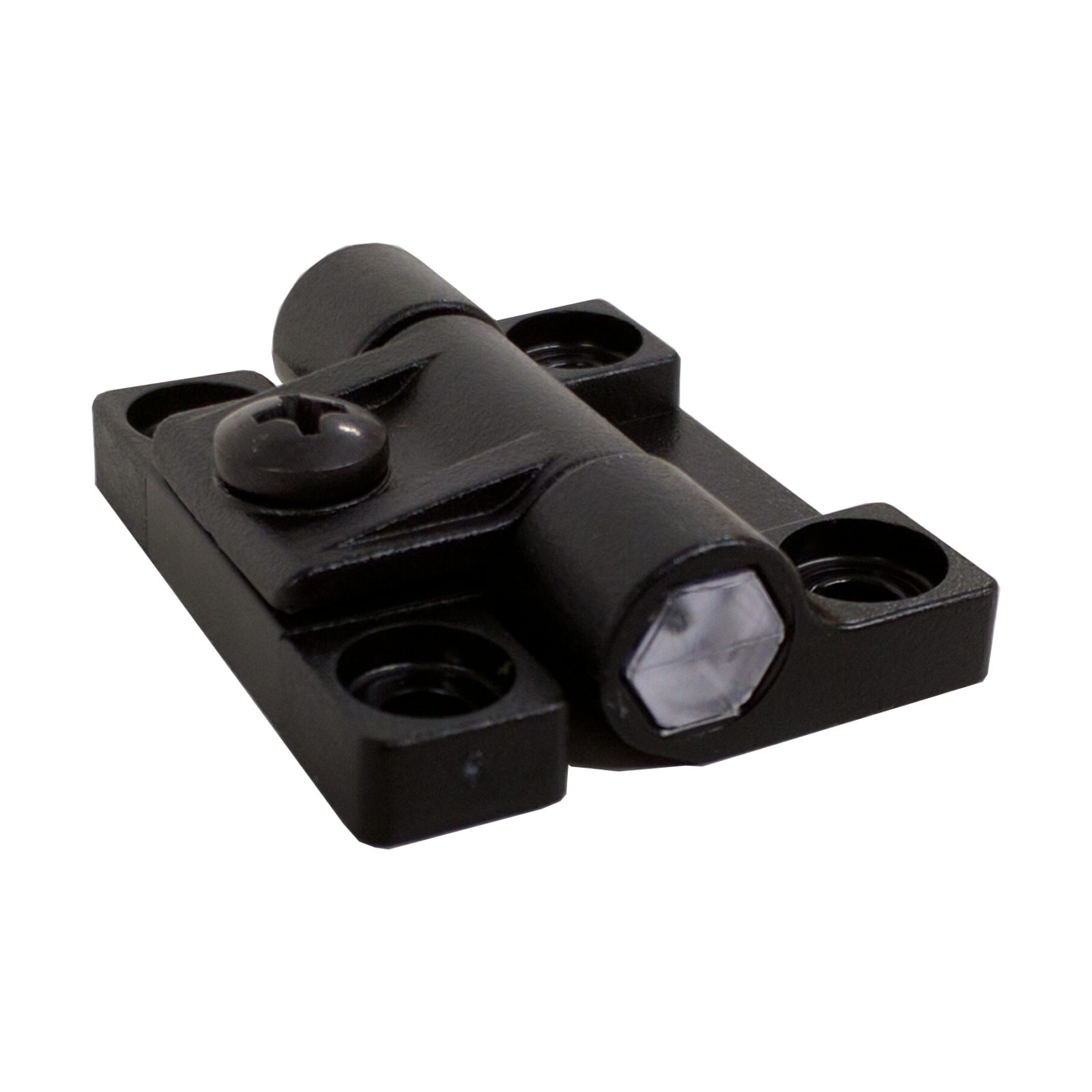

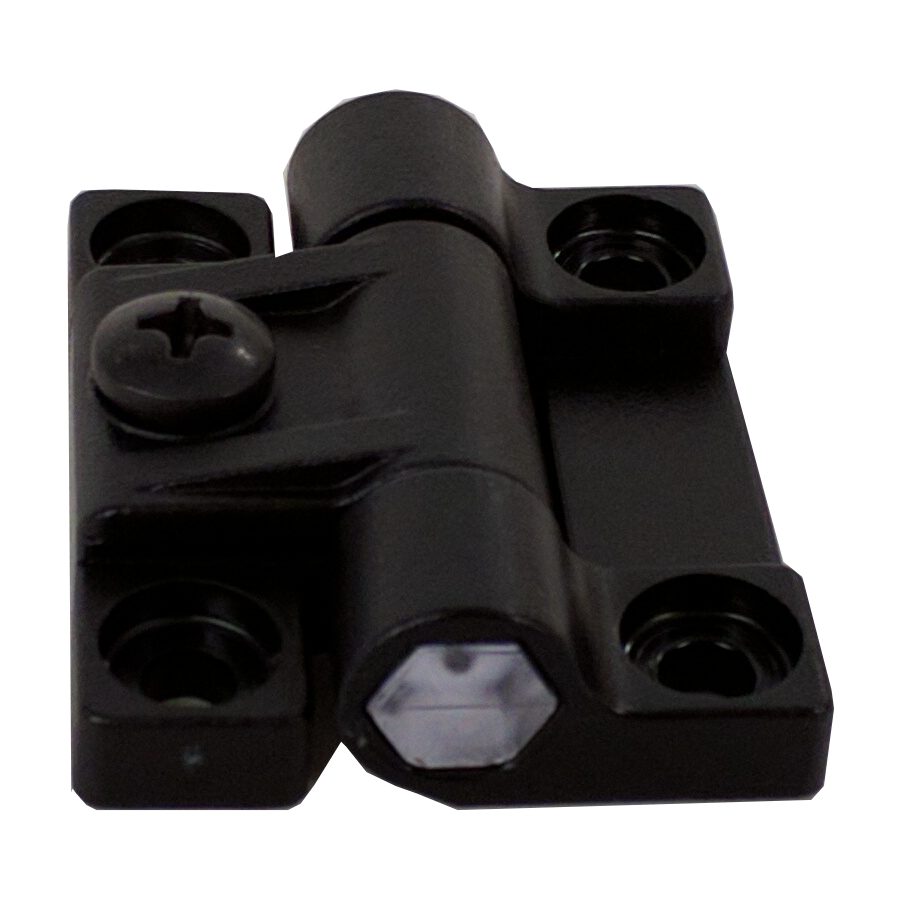

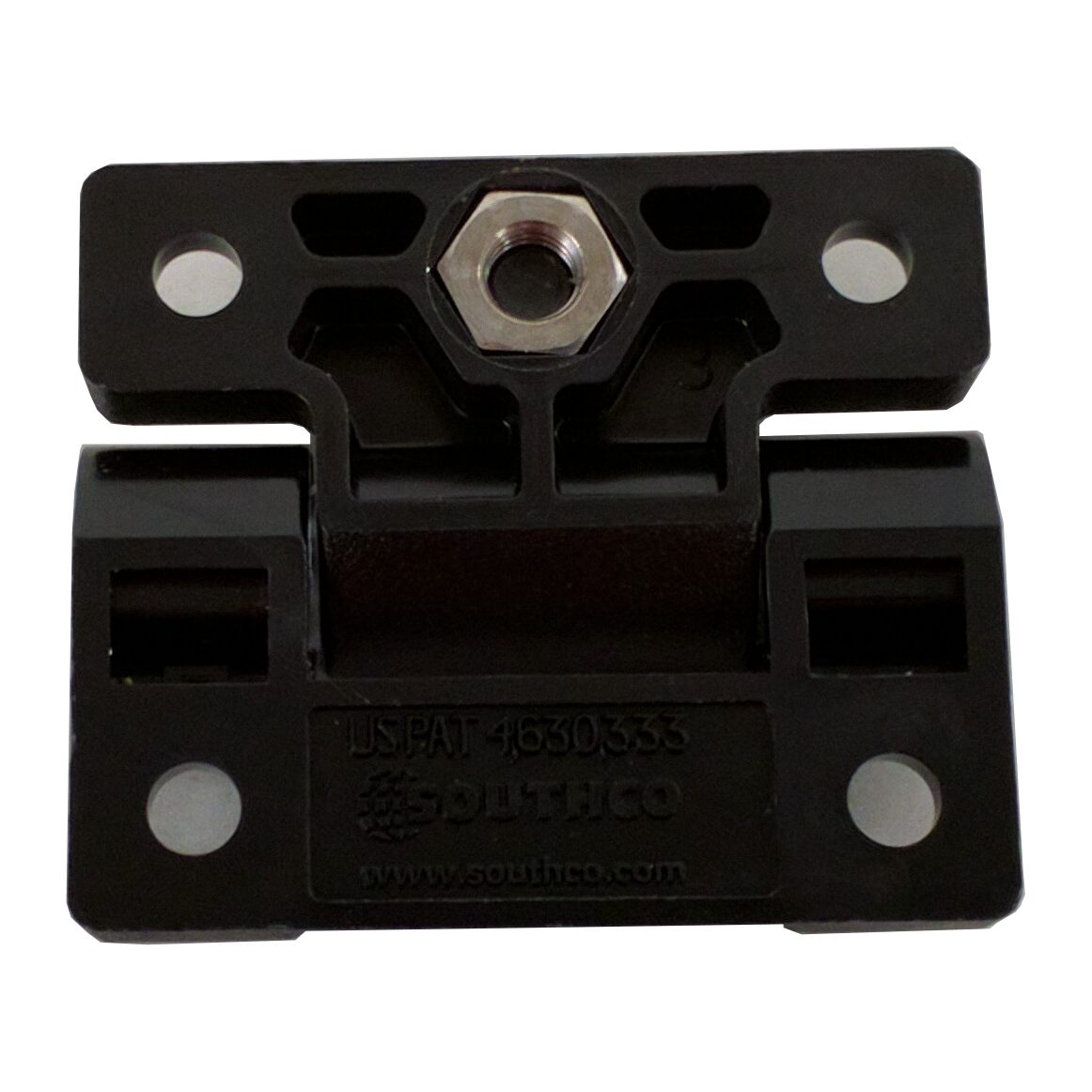

100-345 Adjustable Hinge (Small)

$14.50

SKU: 100-345 Categories: ,

Product Description

Material: Acetal Leaves with Polycarbonate Hinge Pin.

Ultimate Shear Load: 180 lbs.

Includes: Aluminum Mounting Blocks and Hardware.

Additional Information

Weight 0.5 lbs
Packaging Dimensions 4 × 3 × 3 in

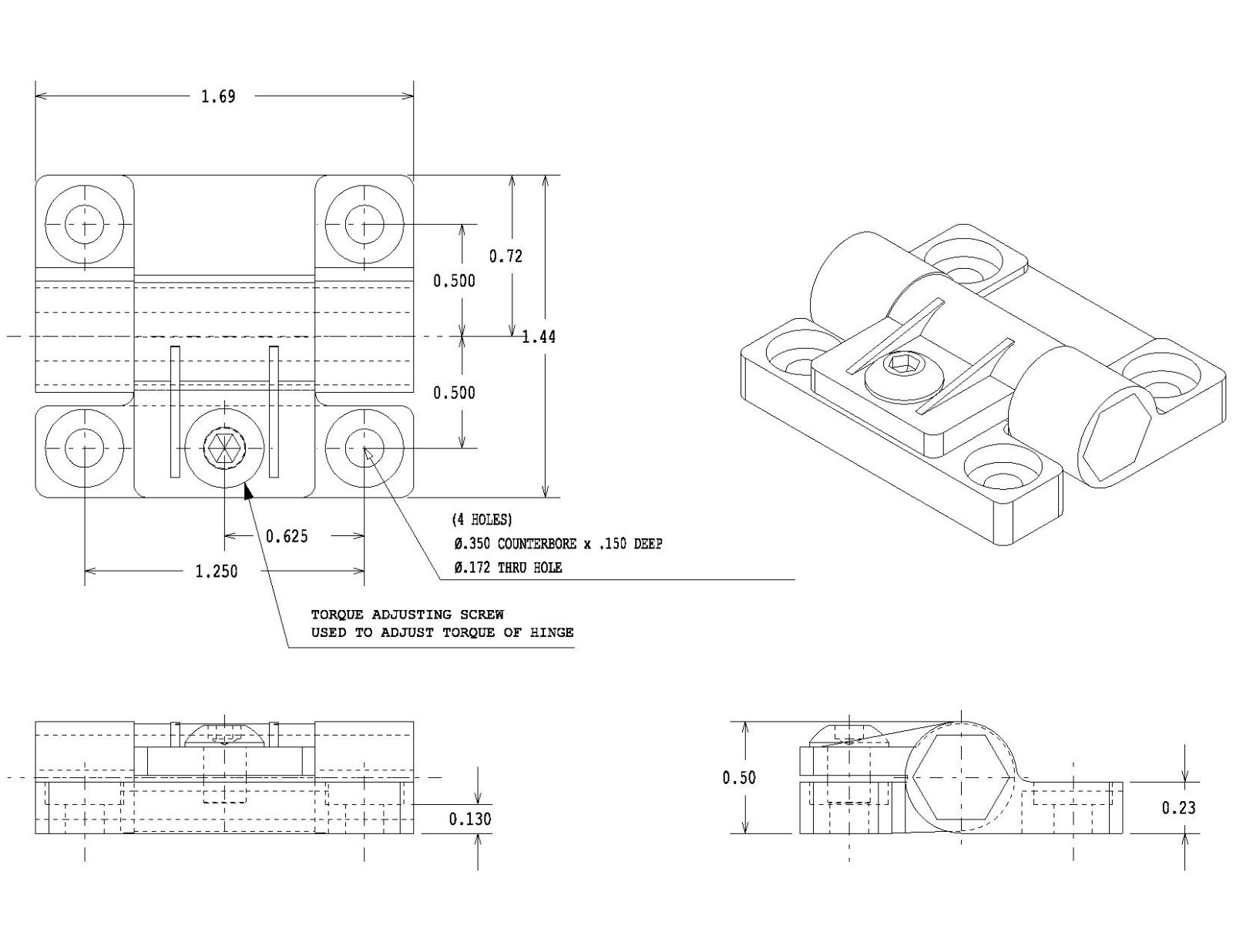

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

100-100-98in0001

100-345.eAsm
100-345.igs
100-345.stp
100-345.x_b
100-345.x_t
100-345.dwg
