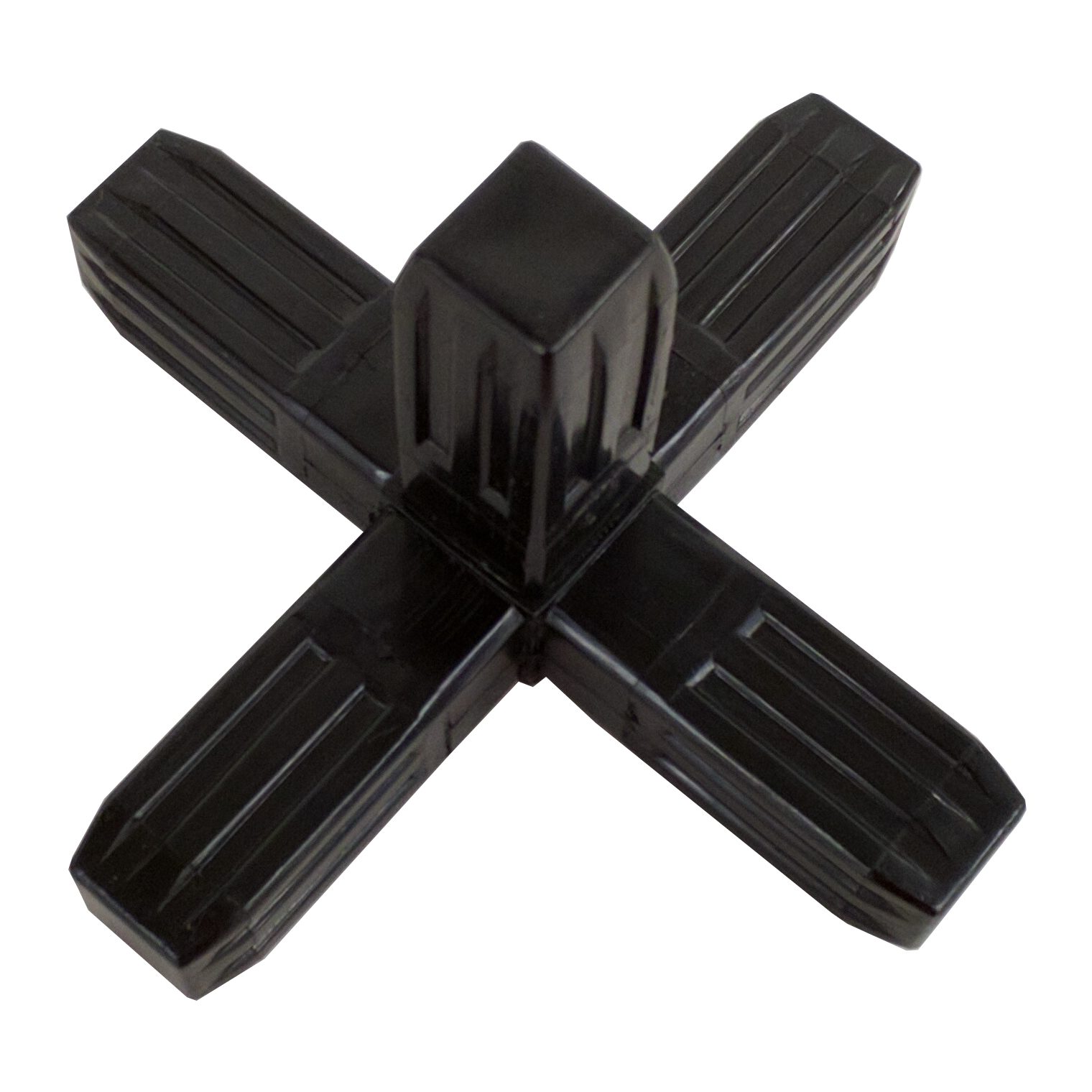

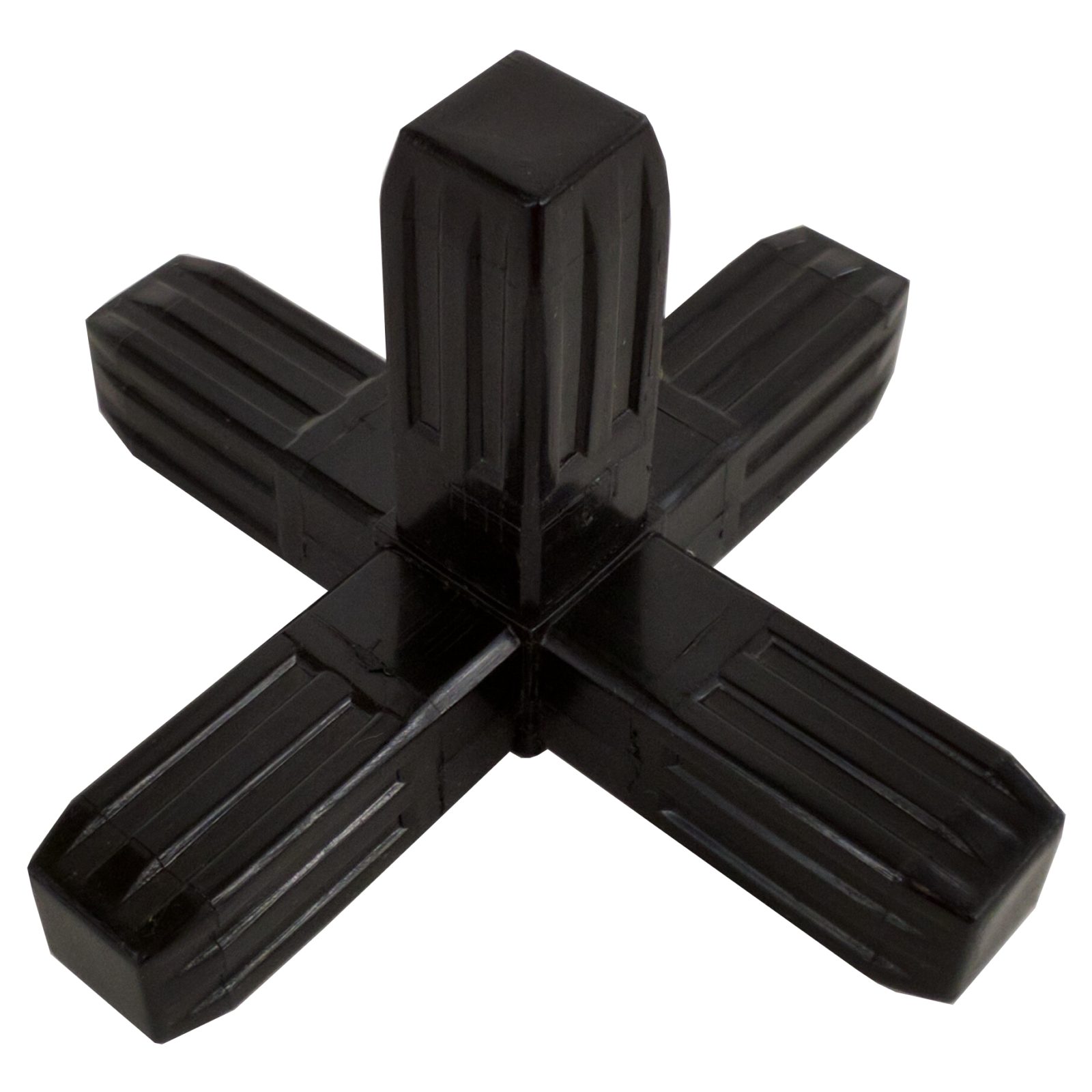

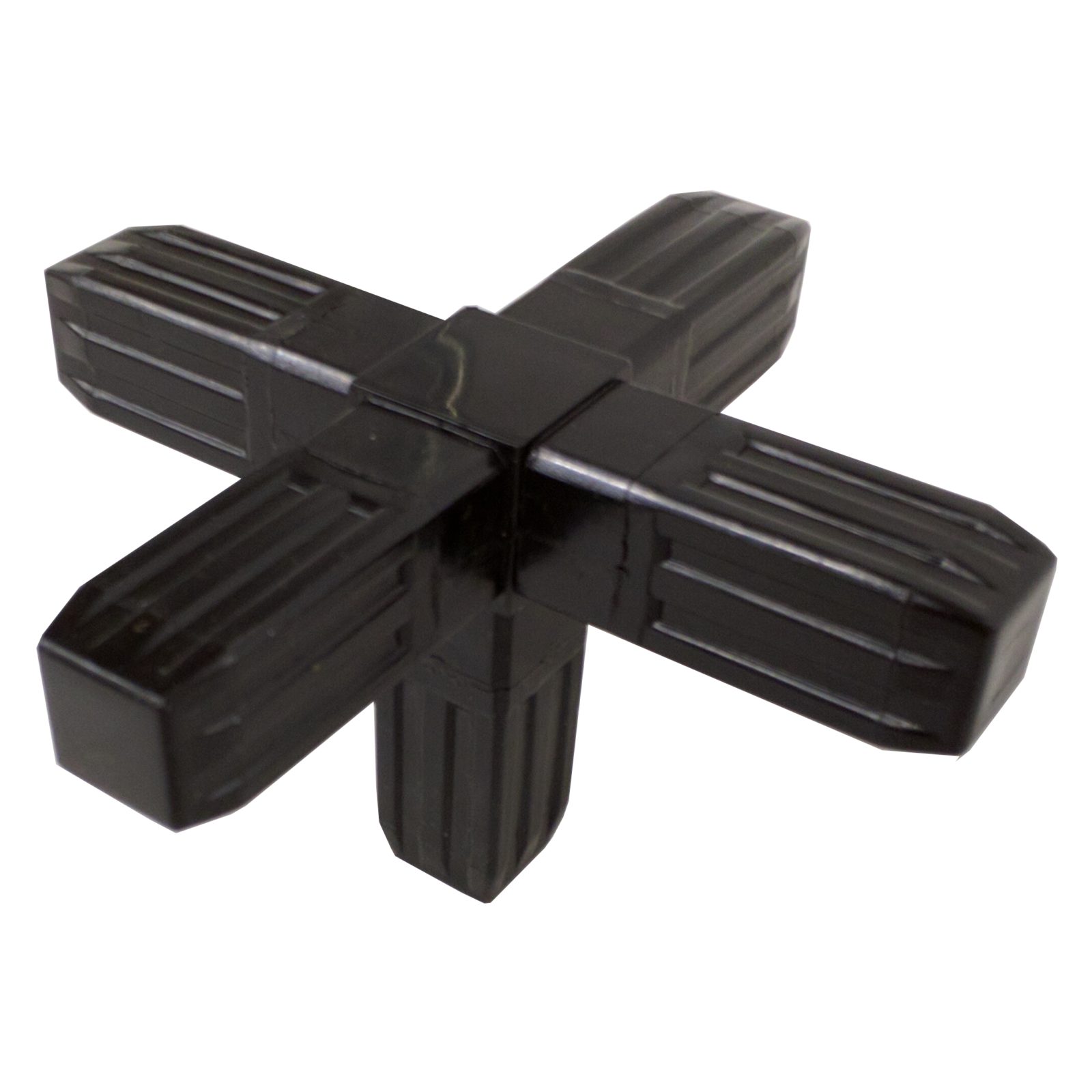

100-320-S 5-Way Black Steel-Core Connector
100-320-S 5-Way Black Steel-Core Connector - Image 2
100-320-S 5-Way Black Steel-Core Connector - Image 3
100-320-S 5-Way Black Steel-Core Connector - Image 4

100-320-S 5-Way Black Steel-Core Connector

$11.75

SKU: 100-320-S Categories: ,

5-Way Connector

5-Way Connector

Welded Steel Core with ABS Nylon Coating

Weight: .5 lbs.

Assembles with Aluminum Extrusions, Steel Tube, Stainless Steel Tube

Additional Information

Weight 0.25 lbs
Dimensions 5.5 × 5.5 × 5.5 in
Color Black Gray

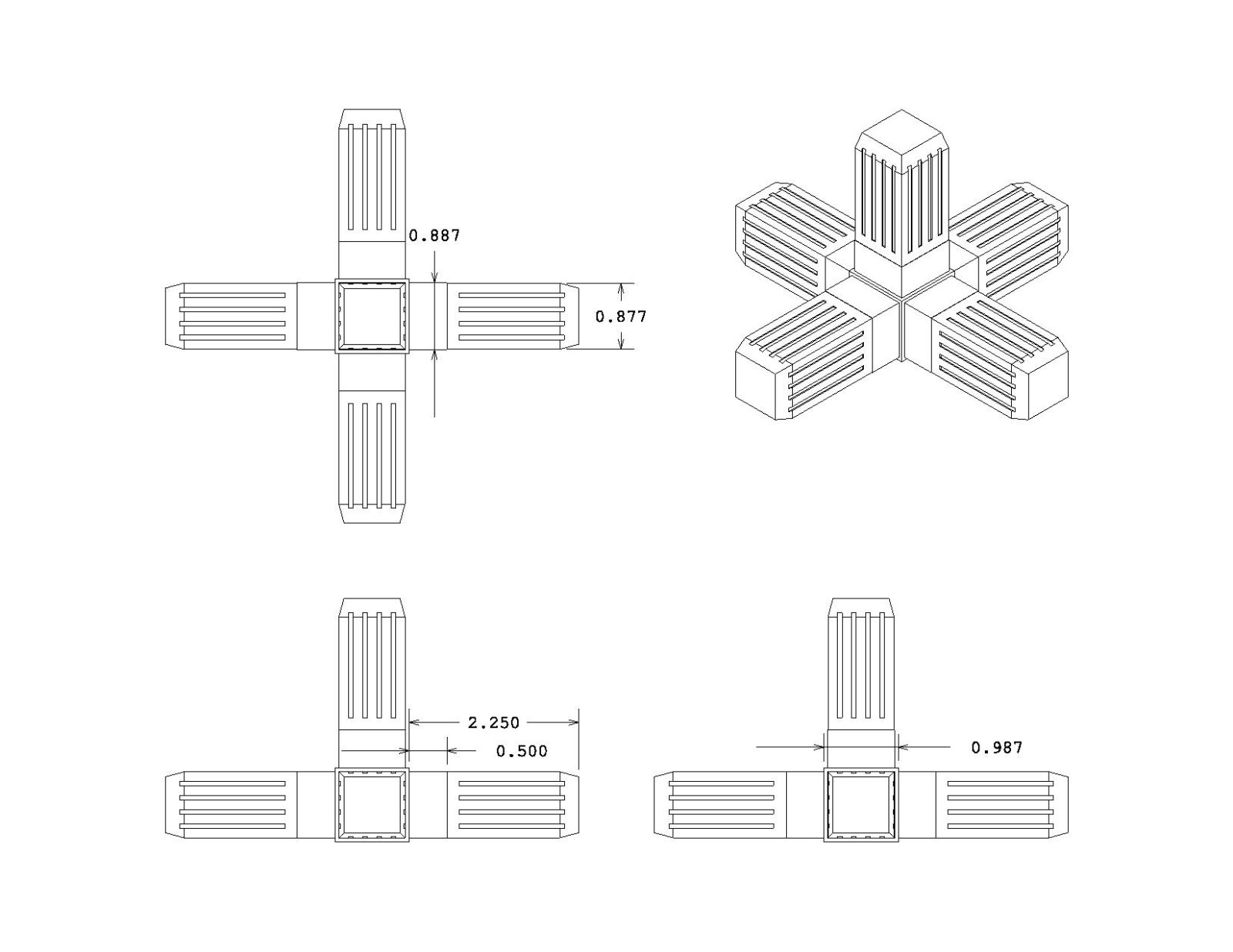

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

100-100-98in0001

100-320-S.eAsm
100-320-S.igs
100-320-S.stp
100-320-S.x_b
100-320-S.x_t
100-320-S.dwg

100-320-S 5-Way Black Steel-Core Connector
