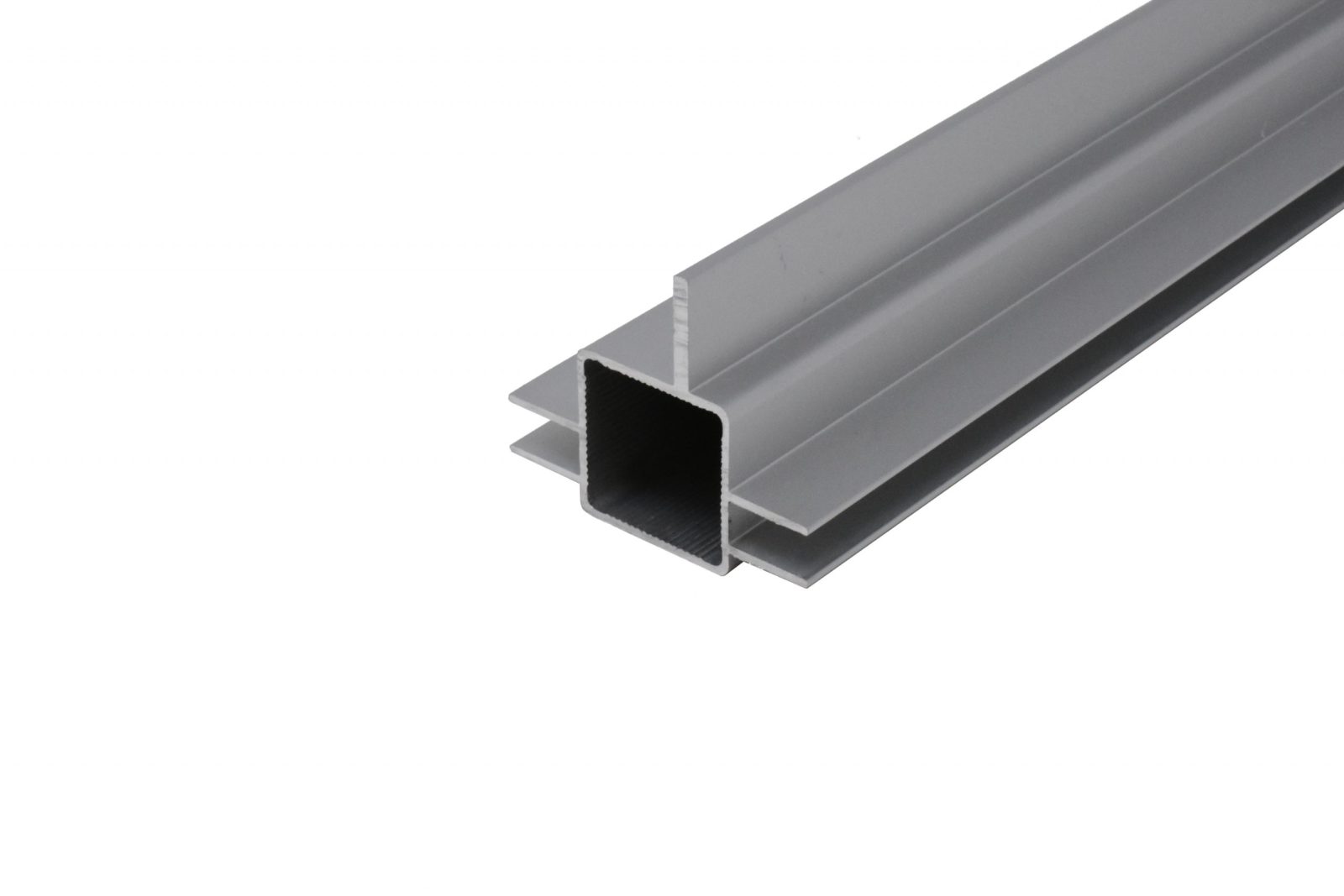

100-272S 2-Way Tube Captive Extended Fin for 1/4″ Panel & 1/2″ Panel Flush

272-S 2-Way Captive Extended Fin for 1/4″ Panel & 1/2″ Panel Flush

$18.95 – $32.95

2-Way Captive Extended Fin for 1/4″  & 1/2″ Panel Flush
Standard Lengths:  48 & 94 Inches (98 Inches Available)
Finishes Available:  Black, Clear Satin Anodize and Custom Colors

       Use with the following extrusions:

       100-120, 100-150, 100-180, 100-191, 100-250-S, 100-260-S,

       100-270-S,   100-280-S

       Assembles with all Connectors

Satin Silver Anodized
Matte Black Powder Coated
Clear

For use with our snap-fit Quick-Release connectors

# of cut pieces per tube

Length of custom cuts
Example: (5) @ 10.00″, (10) @ 6.00″

Specify the number of custom holes you would like drilled per tube.

Specify diameter and locations where you would like additional holes drilled per tube below.

Enter the number of rivet nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

The number of riv nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

Please specify rivet nut size and location of installation.

SKU: 100-272S Categories: ,

Aluminum Extrusions

2-Way Fin for 1/4″ Captive Panel &  1/2″ Flush Panel

  • 6063 T-5 Aluminum
  • Size: 1.00″ Square
  • Wall Thickness: .050″
  • Weight Per Foot: .436 lbs
  • Finishes Available: Clear Satin Anodize, Black Powder Coat, or Custom Color

Additional Information

Weight 3.5 lbs
Dimensions 94 × 1 × 1 in
Tube Color
Satin Silver Anodized

Clear Satin Silver Anodized

Matte Black Powder Coated

Matte black powder coated finish
Tube Length 48 in • 1,219.2 mm

4 feet (48 inch)/1,219.2 millimeters

, 94 in • 2,387.6 mm

94 inches (7.8 feet)/2,387.6 millimeters
272-S 2-Way Captive Extended Fin for 1/4″ Panel & 1/2" Panel Flush
