Aluminum Extrusions

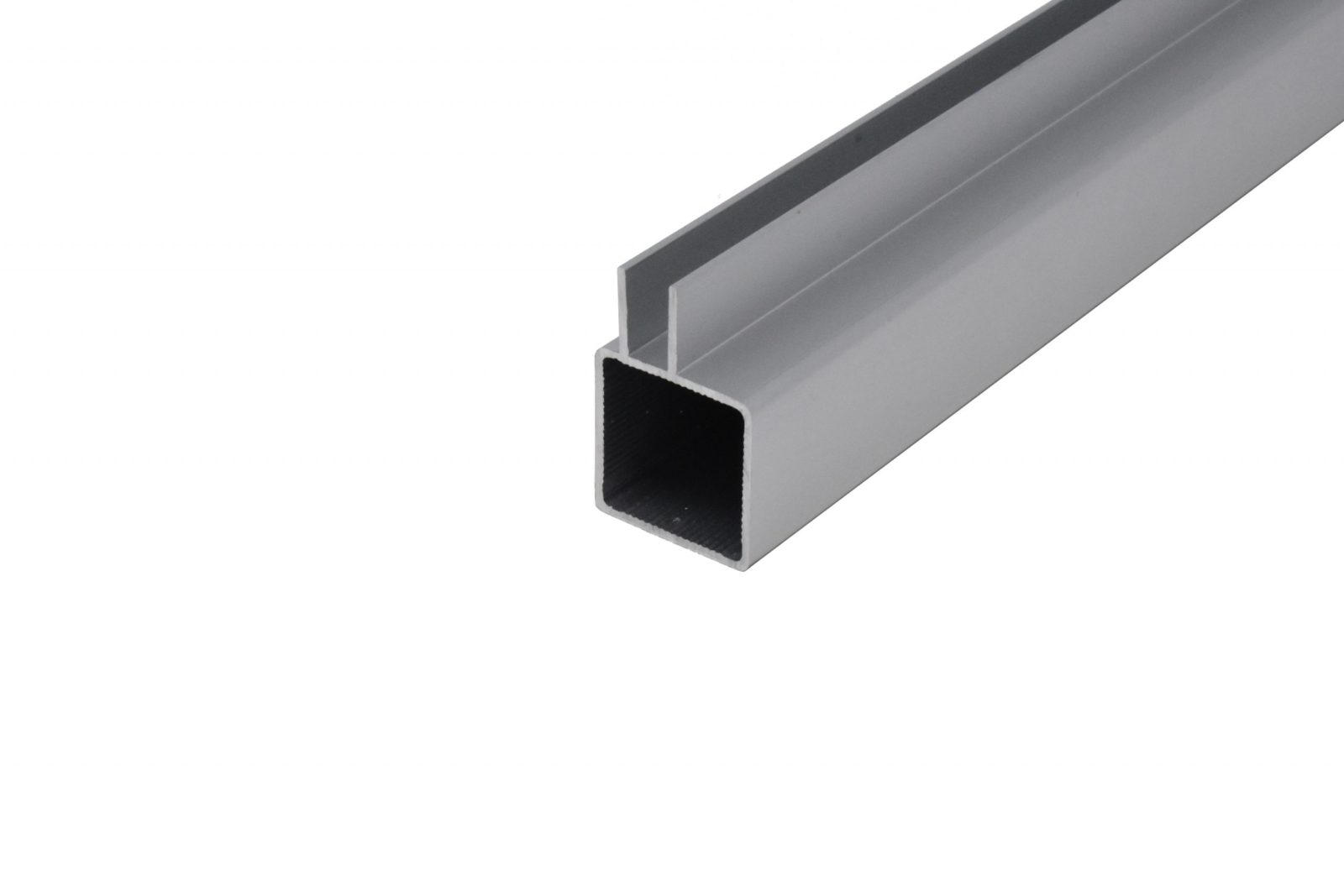

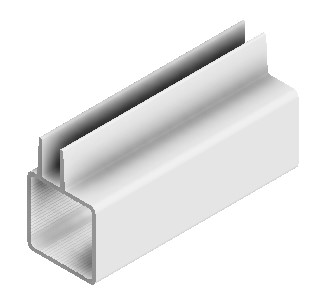

100-250-S Single I-Slotted Captive Extended Fin for 1/4″ Panel
- Extended Fin
- 6063 T-5 Aluminum
- Size: 1.00″ x 1.00″ x .050″ Wall
- Wall Thickness: .050″
- Finishes Available: Clear Satin Anodize, Black Powder Coat, or Custom Color.
250-S Single I-Slotted Captive Extended Fin Square Aluminum Extrusion for 1/4″ Panel
$15.48 – $25.95
Single Captive Extended Fin Aluminum Extrusion for 1/4″ Panel
Standard Lengths: 48 & 94 Inches (98 Inches Available)
Custom cutting options available
Finishes Available: Black, Clear Satin Anodize, and Custom Colors
Use with the following extrusions:

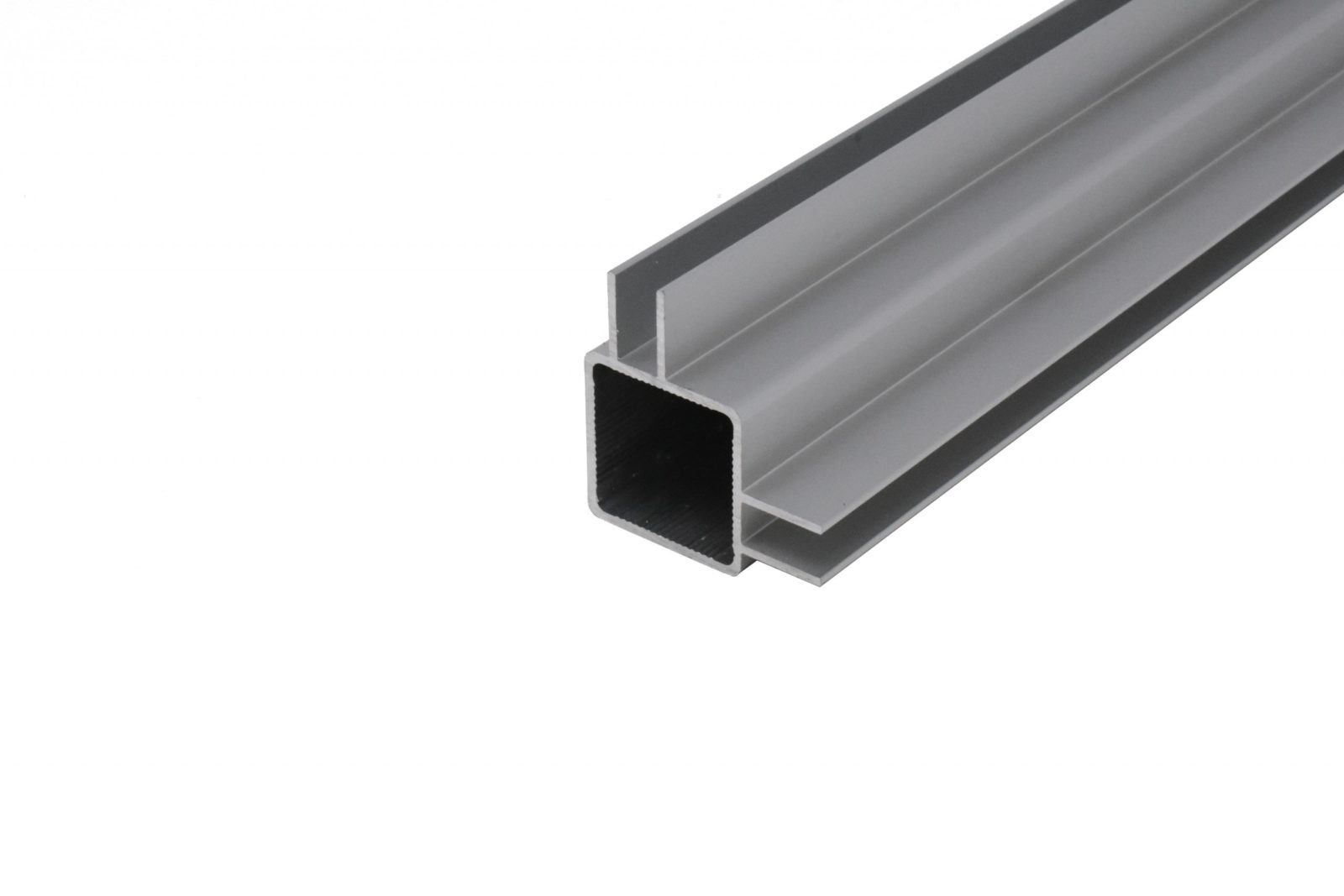

100-100, 100-260-S, 100-270-S, 100-280-S
Assembles with all Connectors
Additional Information
| Weight | 3 lbs |
|---|---|
| Dimensions | 94 × 1 × 1 in |
| Tube Color | Satin Silver Anodized
Clear Satin Silver Anodized Matte Black Powder Coated

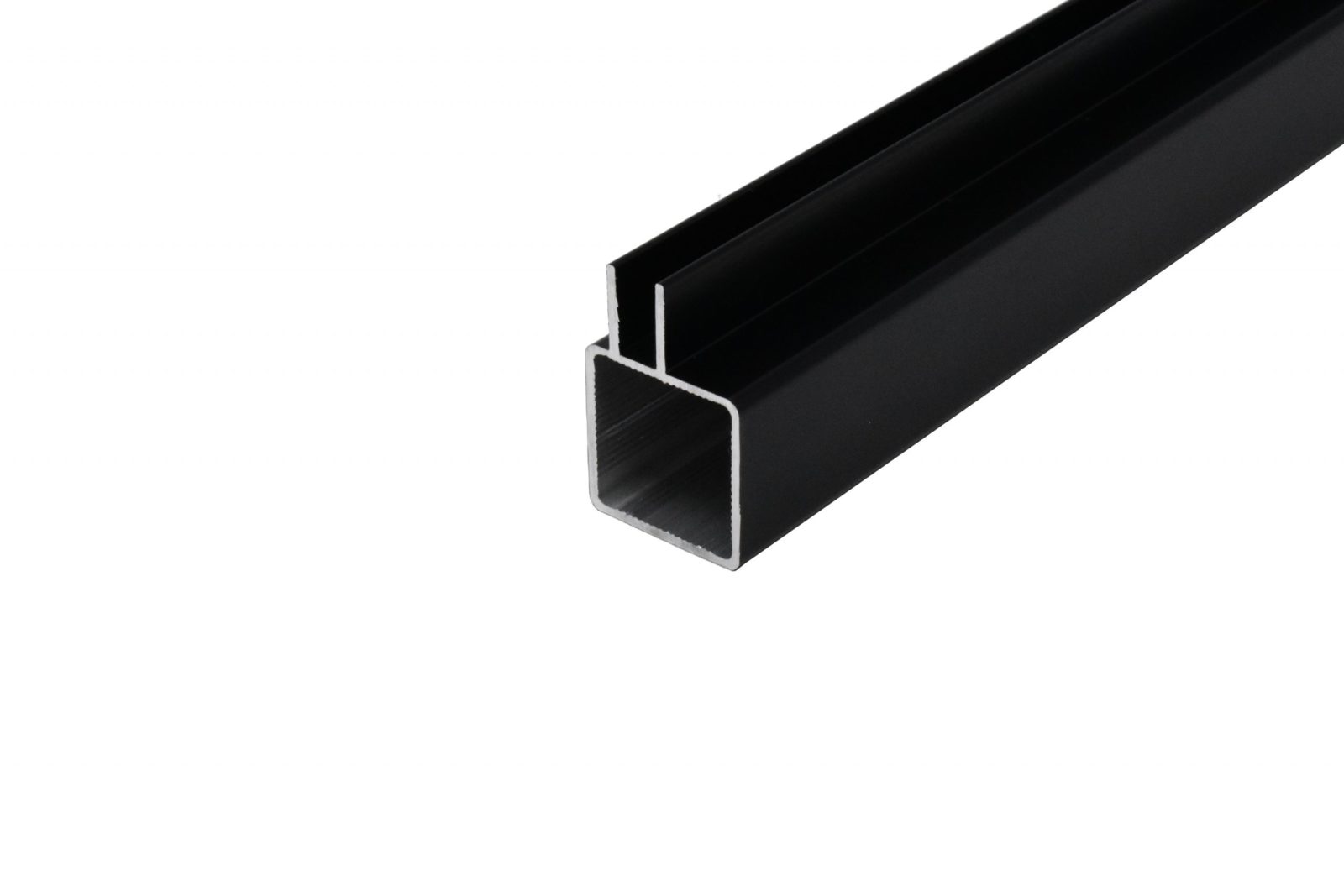

Matte black powder coated finish Gloss White Powder Coated
Gloss white powder coated finish |
| Tube Length | 48 in • 1,219.2 mm 4 feet (48 inch)/1,219.2 millimeters , 94 in • 2,387.6 mm94 inches (7.8 feet)/2,387.6 millimeters |
 |

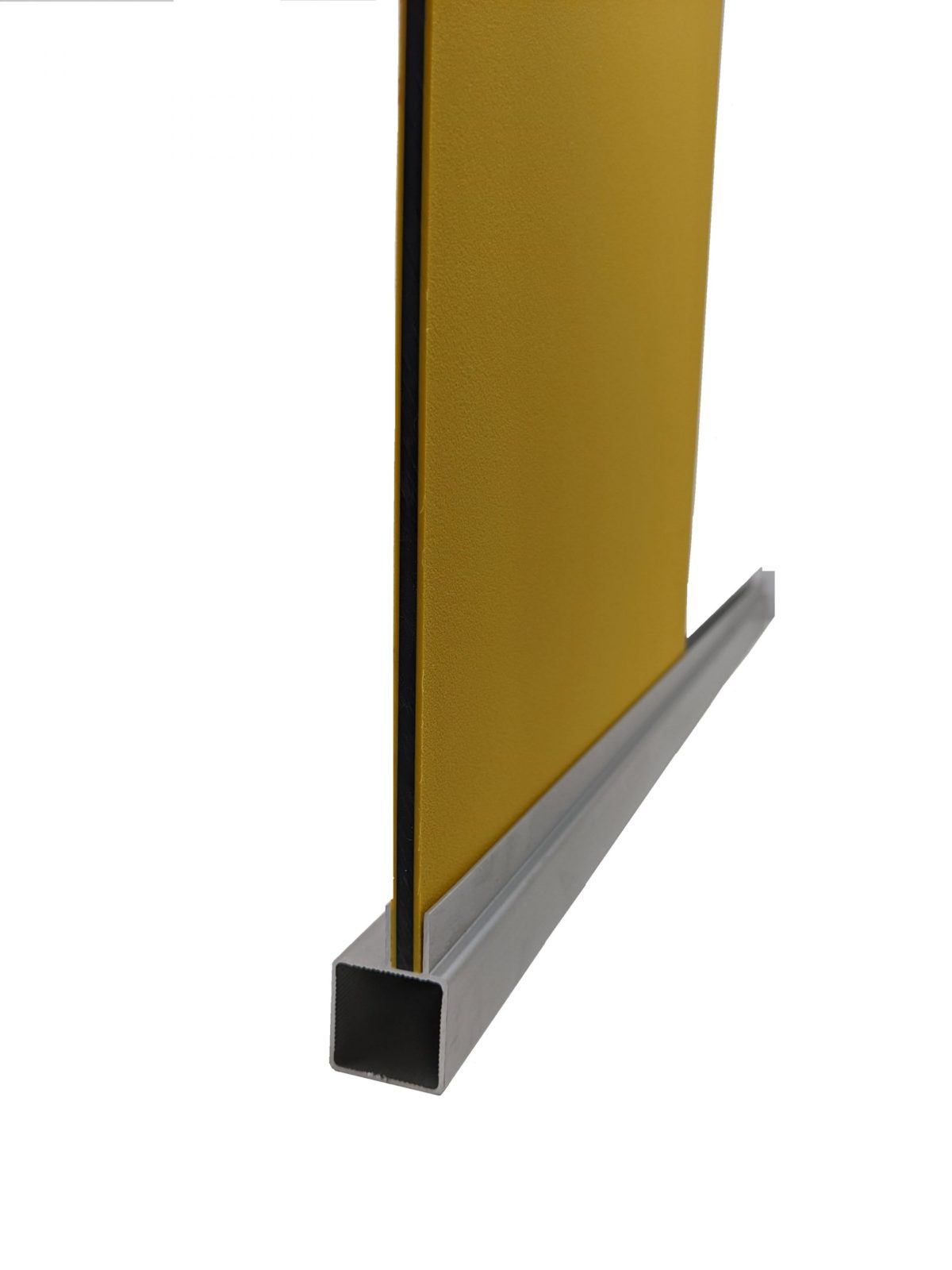

 0.50″ single extended captive fin extruded aluminum tube by EZTube for 1/4″ panels for increased panel security  0.25″ standard fin height for compact presentation |

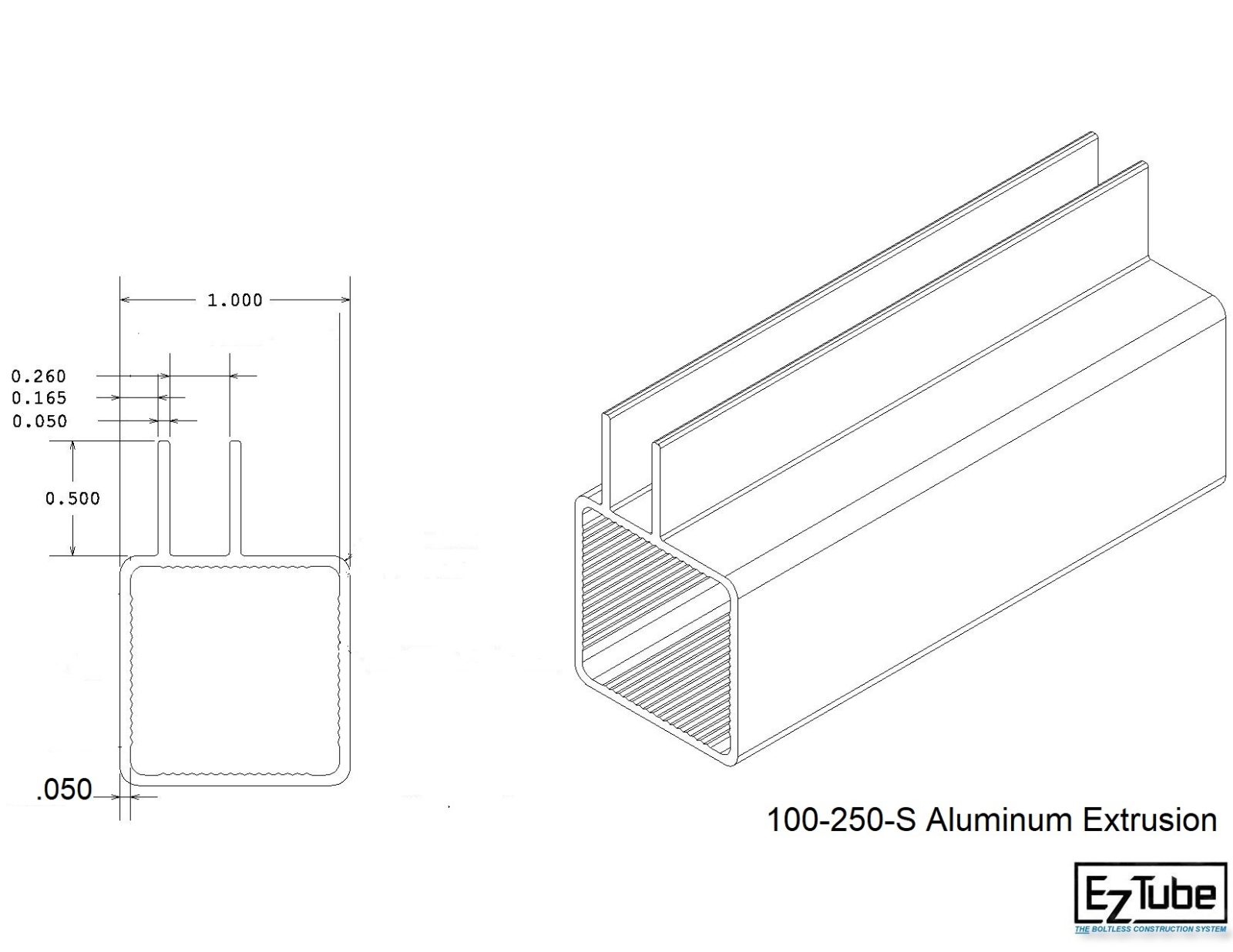

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.
