Aluminum Extrusions

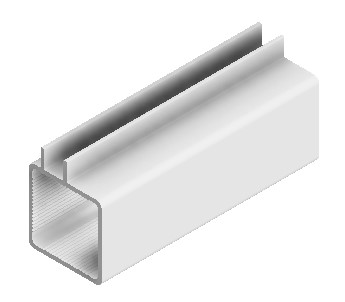

100-250 Single I-Slotted Captive Extended Fin for 1/4″ Panel
- 6063 T5 Extruded Aluminum Tube
- Size: 1.00″ Square
- Wall Thickness: .050″
- Finishes Available: Clear Satin Anodize, Black Powder Coat, or Custom Color
Sale!
250 Single I-Slotted Captive Fin Square Aluminum Extrusion for 1/4″ Panel
$12.48 – $28.95
Single Captive Fin Aluminum Extrusion for 1/4″ Panel
Standard Lengths: 48 & 94 Inches (98 Inches Available)
Custom cutting options available
Finishes Available: Black, Clear Satin Anodize, and Custom Colors
Use with the following extrusions:
100-100, 100-260, 100-270, 100-280
Assembles with all Connectors
Additional Information
| Weight | 3 lbs |
|---|---|
| Dimensions | 94 × 1 × 1 in |

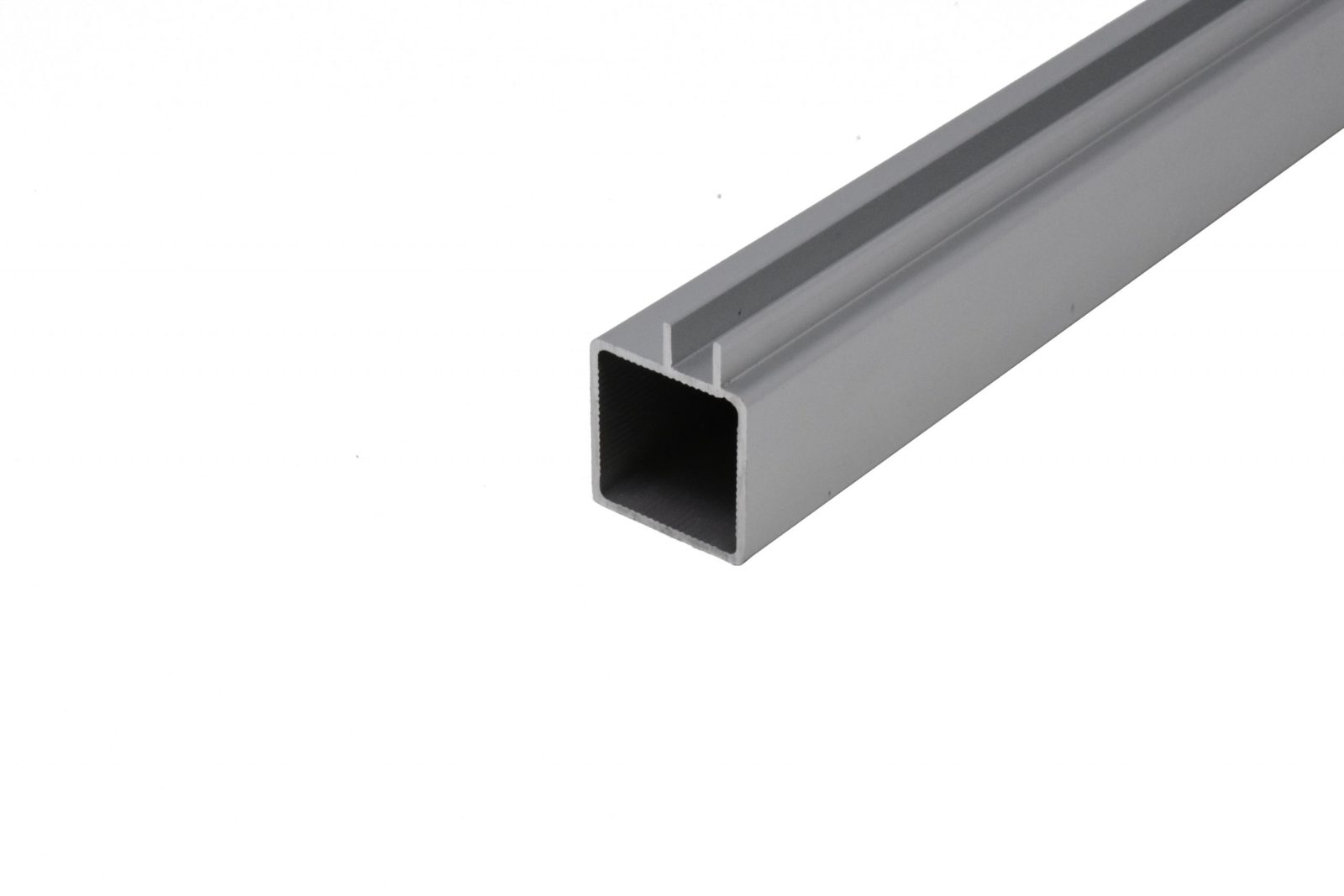

| Tube Color | Satin Silver Anodized

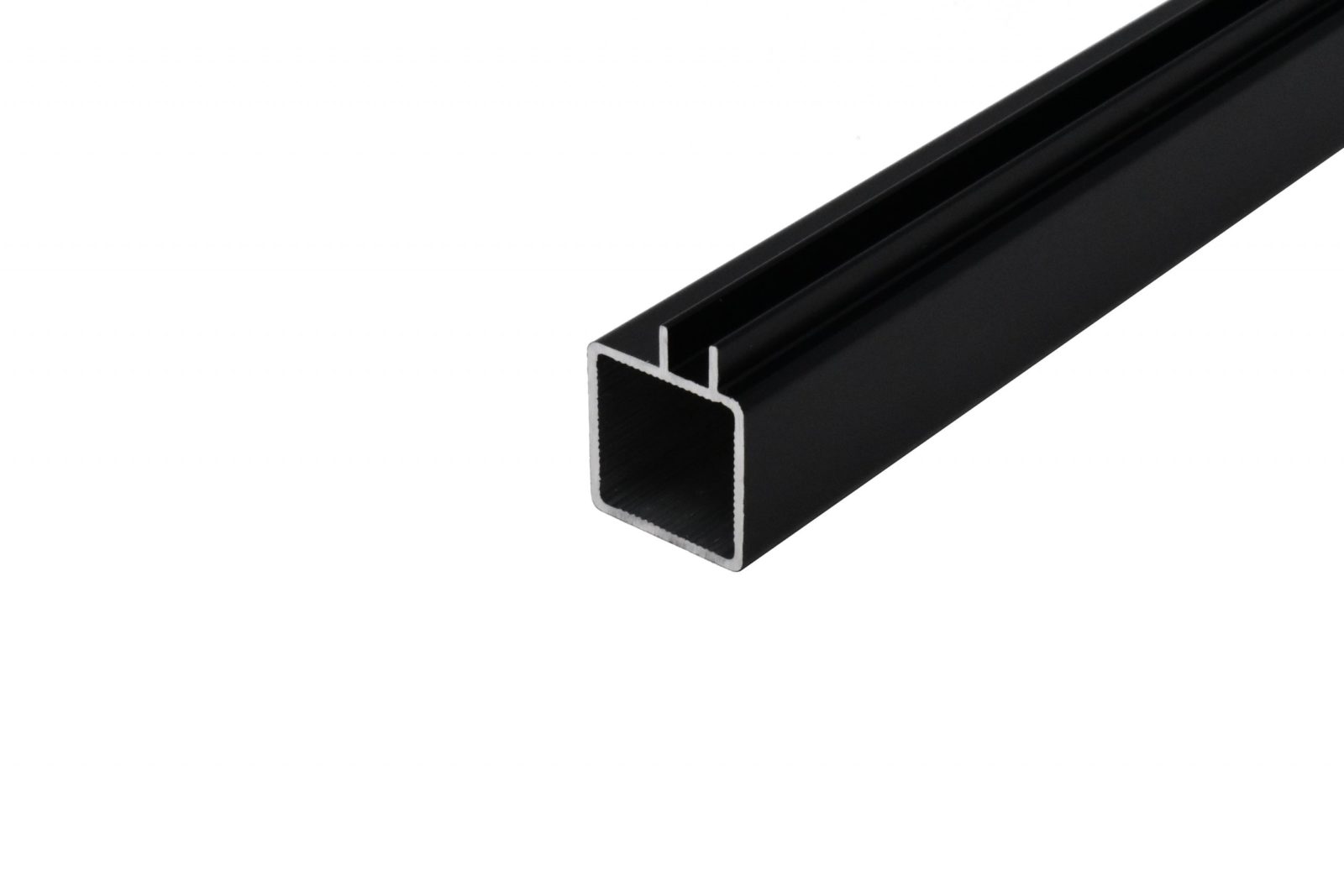

Clear Satin Silver Anodized Matte Black Powder Coated
Matte black powder coated finish Gloss White Powder Coated
Gloss white powder coated finish |
| Tube Length | 48 in • 1,219.2 mm 4 feet (48 inch)/1,219.2 millimeters , 94 in • 2,387.6 mm94 inch (7.8 feet)/2,387.6 millimeters |
 |
 0.50″ single extended captive fin extruded aluminum tube by EZTube for 1/4″ panels for increased panel security  0.25″ standard fin height for compact presentation |

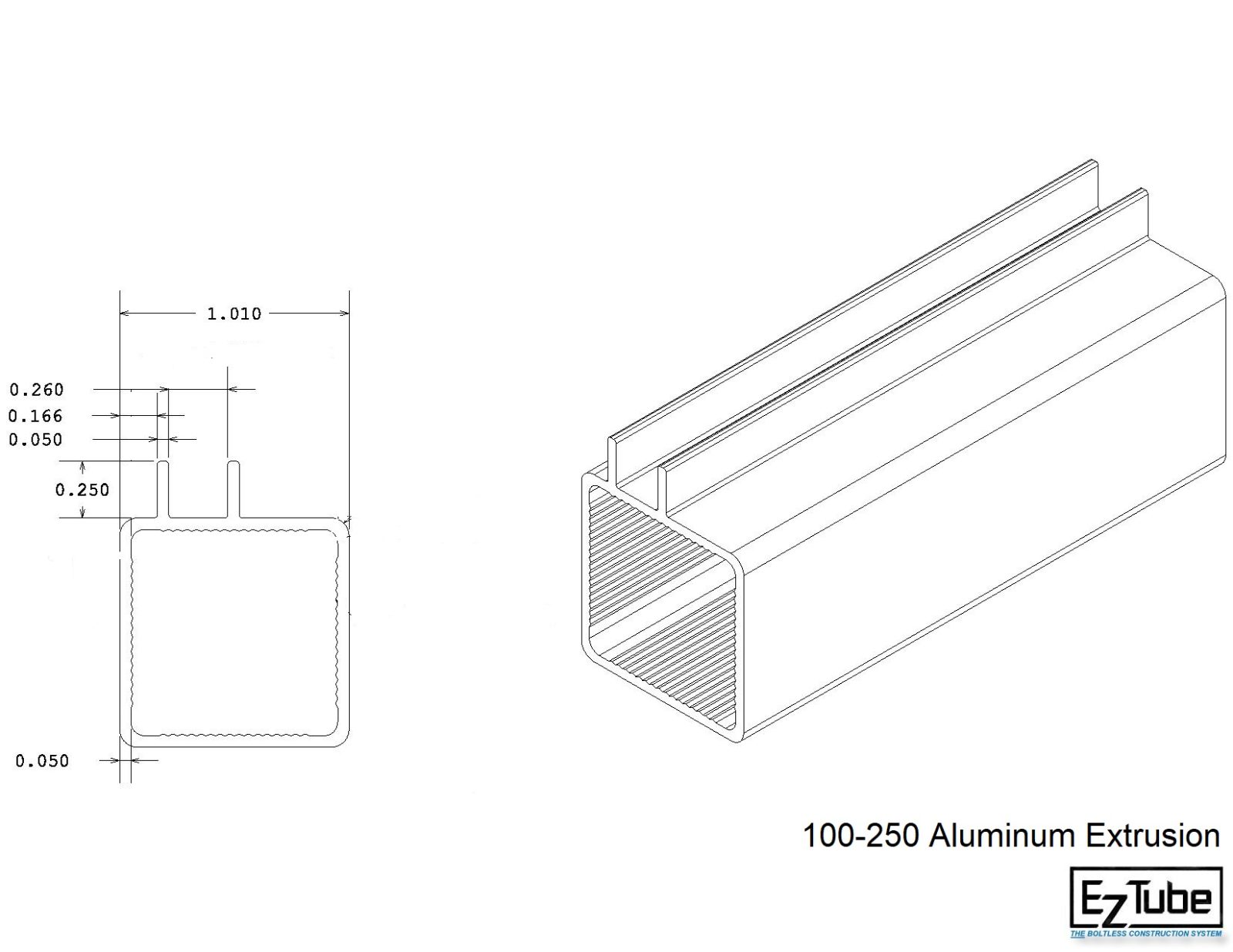

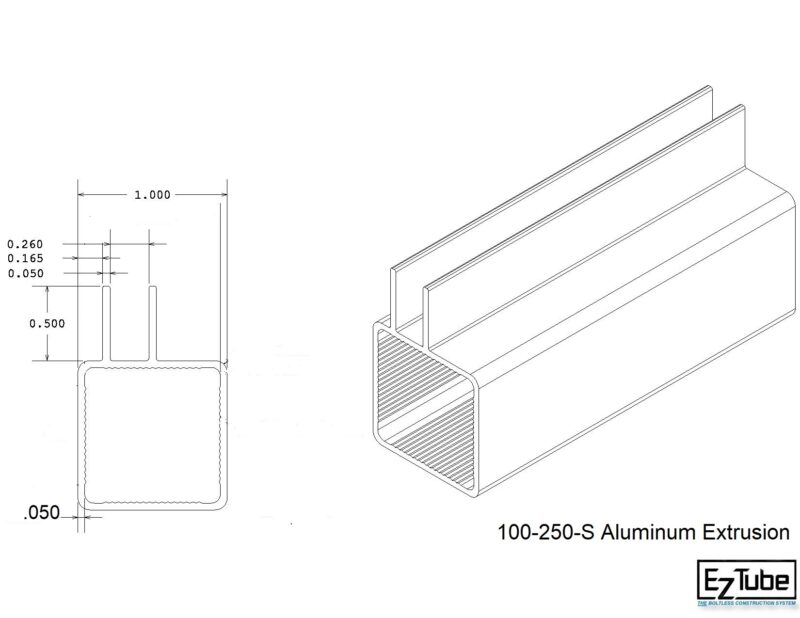

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.
