Aluminum Extrusions
Lower Sliding Door Track for 1/4″ Panel
- For 1/4″ Panels
- Sliding Track / Lower Section
- 6063 T-5 Aluminum
- Size: 1.00″ Square
- Wall Thickness: .050″
- Finishes Available: Clear Satin Anodize, Black Powder Coat, or Custom Color

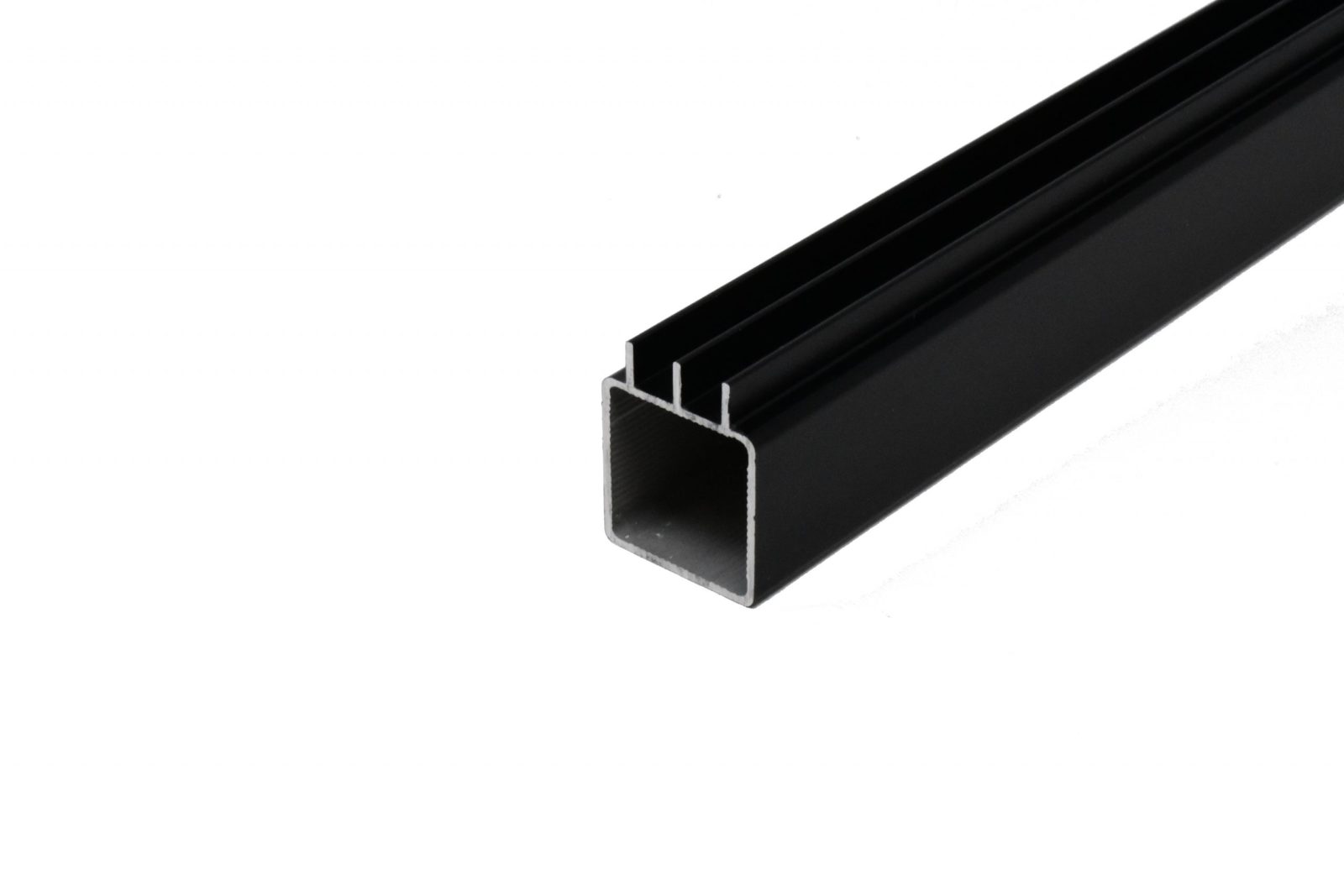

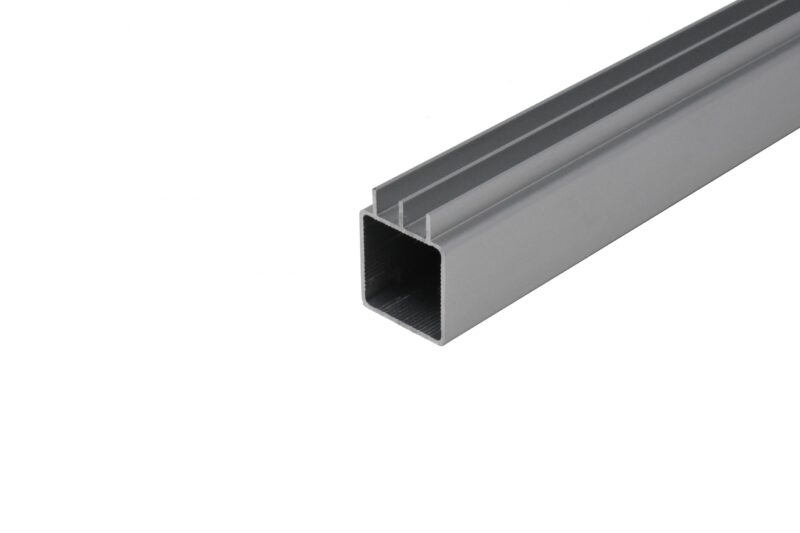

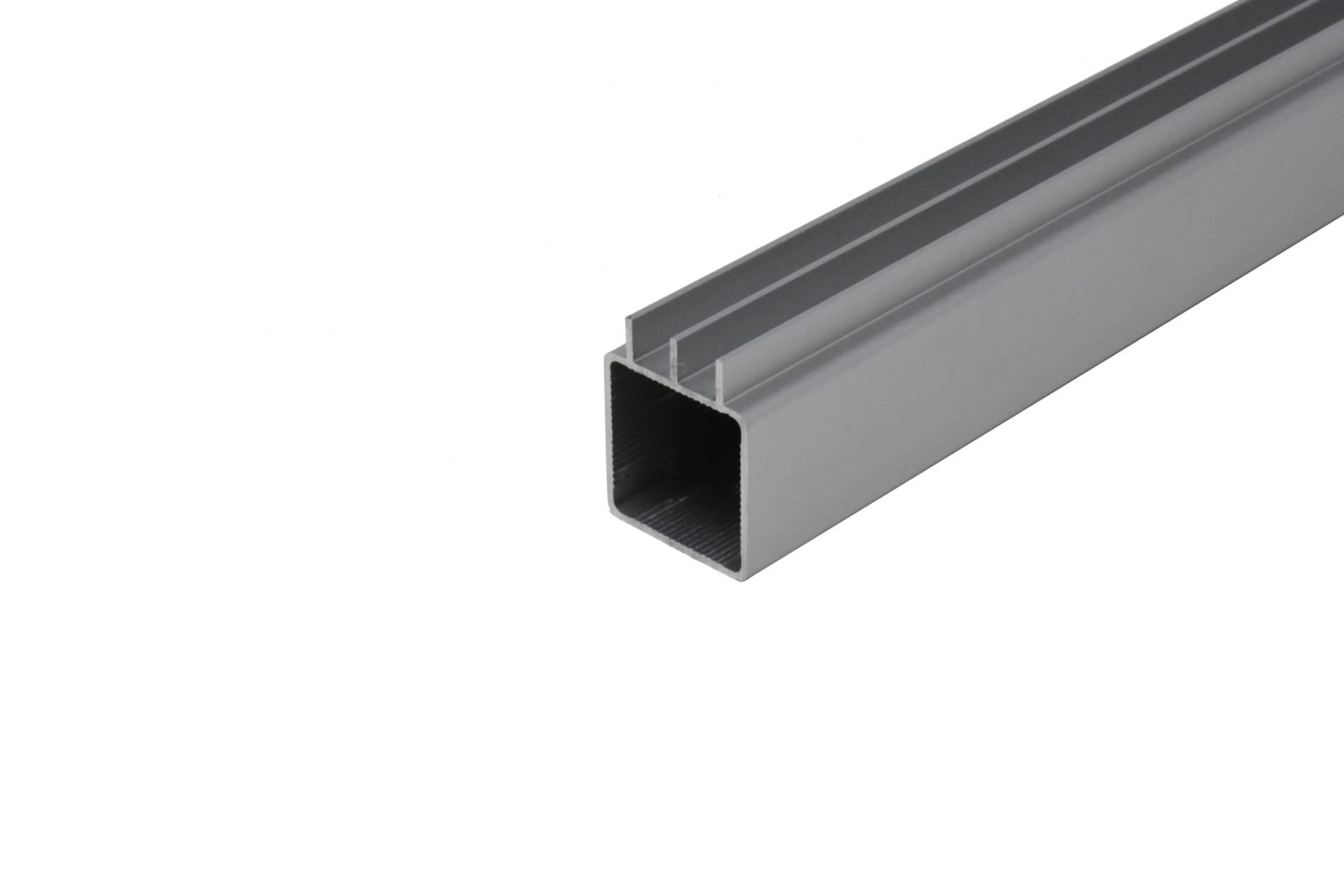

240-L Lower Sliding Door Track W-Slot Linear Rail Square Aluminum Extrusion for 1/4″ Panel
$15.48 – $34.95
(Lower) Sliding Door Track Aluminum Extrusion for 1/4″ Panel
Standard Lengths: 48 & 94 Inches (98 inches available)
Custom cutting options available
Finishes Available: Black, Clear Satin Anodize, and Custom Colors
Use with the following extrusions:
Assembles with all Connectors
Additional Information
| Weight | 3 lbs |
|---|---|
| Dimensions | 94 × 1 × 1 in |
| Tube Color | Satin Silver Anodized
Clear Satin Silver Anodized Matte Black Powder Coated
Matte black powder coated finish Gloss White Powder Coated
Gloss white powder coated finish |
| Tube Length | 48 in • 1,219.2 mm 4 feet (48 inch)/1,219.2 millimeters , 94 in • 2,387.6 mm94 inch (7.8 feet)/2,387.6 millimeters |

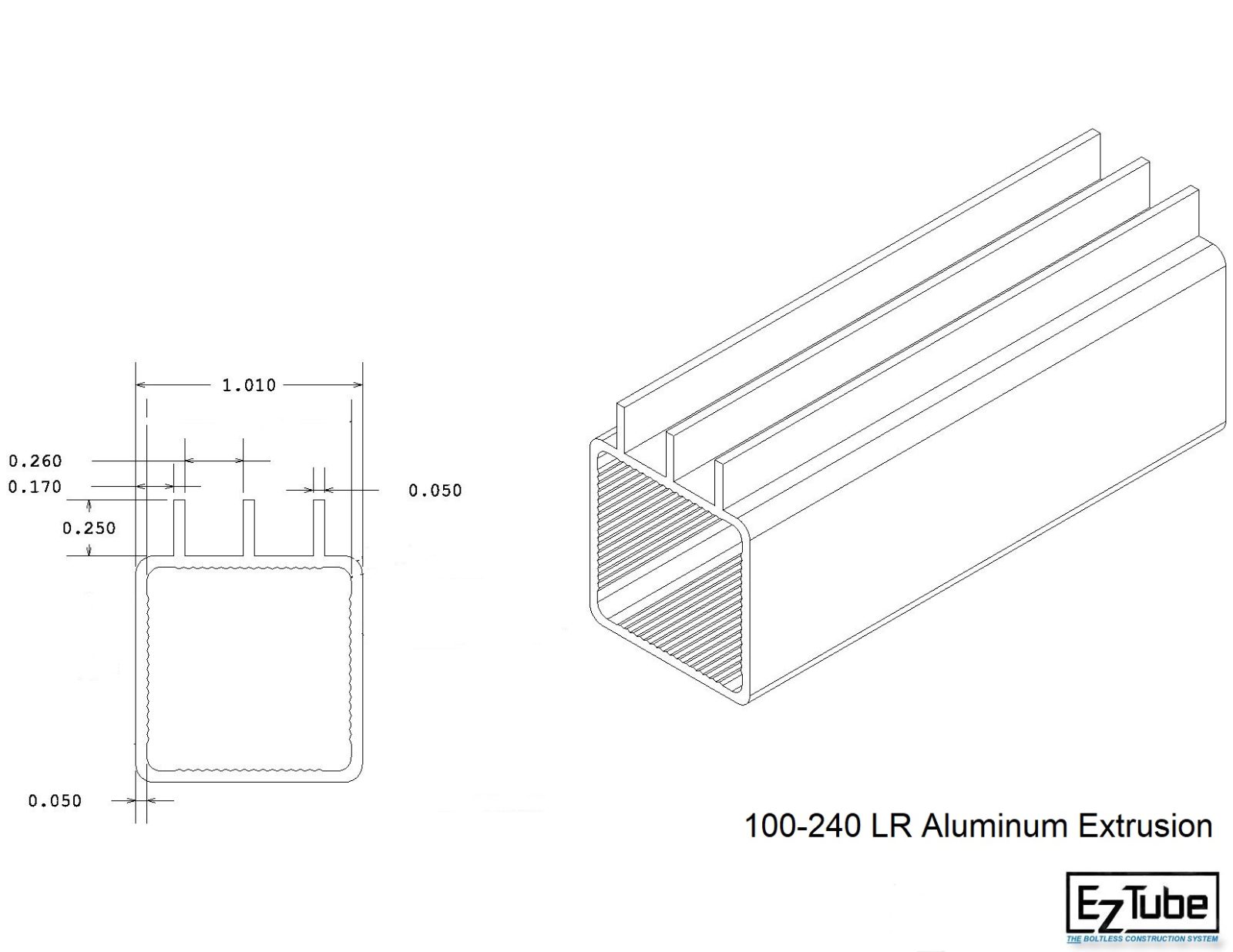

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.
