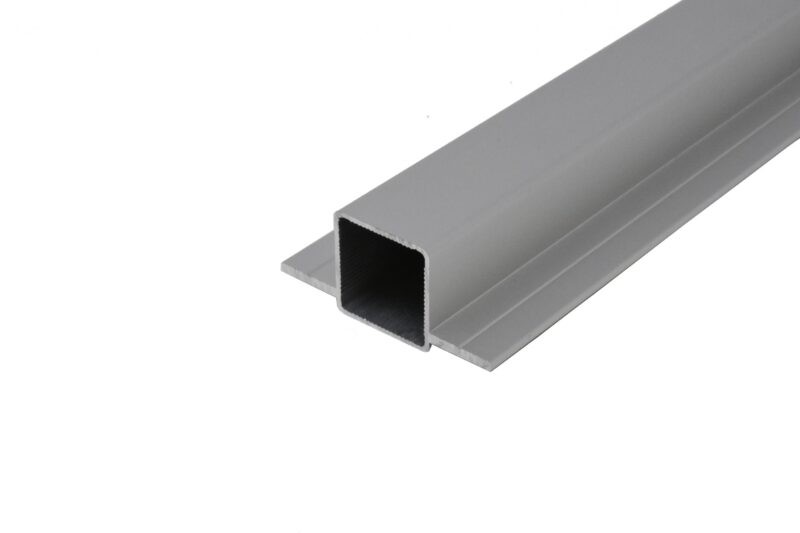

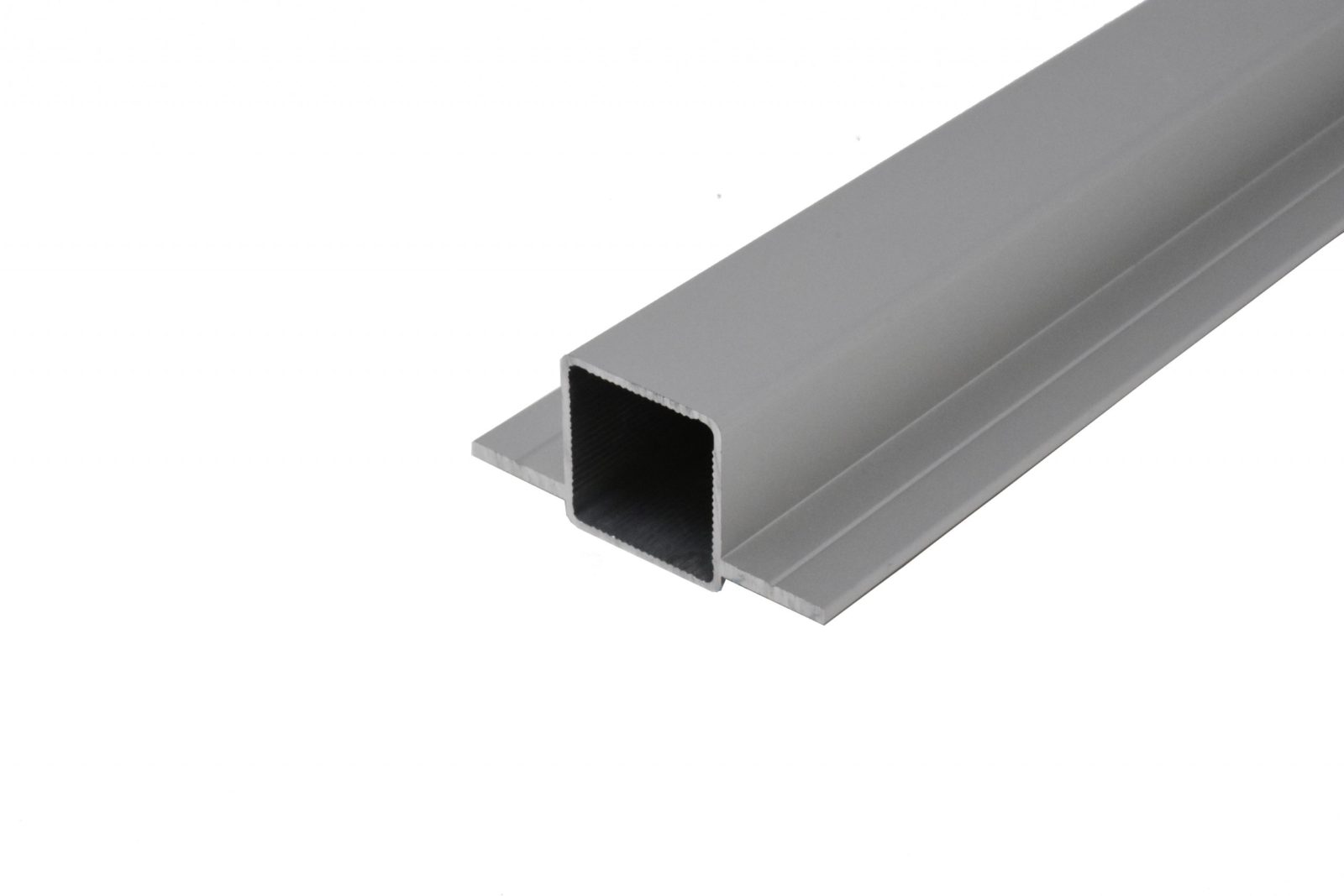

100-140 2-Way Fin for 3/4″ Flush Panel

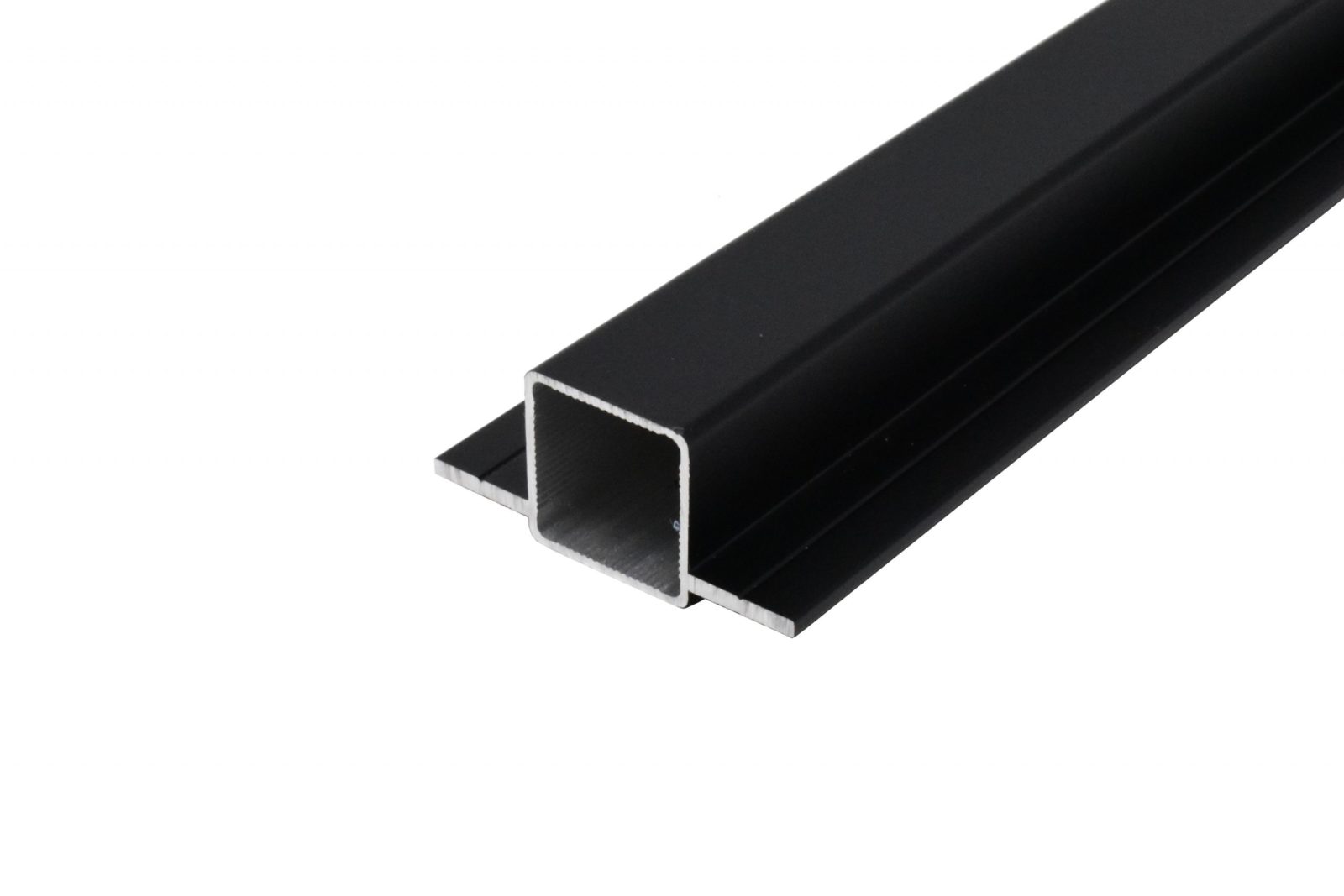

100-140 2-Way Fin Tube in Matte Black for 3/4″ Flush Panel

140 2-Way Double I-Fin Square Aluminum Extrusion for 3/4″ Flush Panel

$14.48 – $34.95



2-Way Aluminum Fin for 3/4″ Flush Panel
Standard Lengths: 48 & 94 Inches (98 inches available)

Custom cutting options available
Finishes Available: Black, Clear Satin Anodize, and Custom Colors

        Use with the following extrusions:

       100-100, 100-110, 100-170

        Assembles with all Connectors



Satin Silver Anodized
Matte Black Powder Coated
Gloss White Powder Coated
Clear

For use with our snap-fit Quick-Release connectors

# of cut pieces per tube

Length of custom cuts
Example: (5) @ 10.00″, (10) @ 6.00″

Specify the number of custom holes you would like drilled per tube.

Specify diameter and locations where you would like additional holes drilled per tube below.

Enter the number of rivet nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

The number of riv nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

Please specify rivet nut size and location of installation.

Quantity Discount Price
99 – 148 1% From $14.34
149 – 198 3% From $14.05
199+ 5% From $13.76
SKU: 100-140 Categories: ,

2 Way Aluminum Fin

2-Way Fin for 3/4″ Recessed Panel

  • 6063 T-5 Aluminum
  • Size: 1.00″ Square
  • Wall Thickness: .050″
  • Finishes Available: Clear Satin Anodized, Black Powder Coat, or Custom Color
  • Compatible with the following extrusions:  100-100, 100-110, 100-170
  • Assembles with all Connectors

Additional Information

Weight 3 lbs
Dimensions 94 × 1 × 1 in
Tube Color
Satin Silver Anodized

Clear Satin Silver Anodized

Matte Black Powder Coated

Matte black powder coated finish

Gloss White Powder Coated

Gloss white powder coated finish
Tube Length 48 in • 1,219.2 mm

4 feet (48 inch)/1,219.2 millimeters

, 94 in • 2,387.6 mm

94 inches (7.8 feet)/2,387.6 millimeters

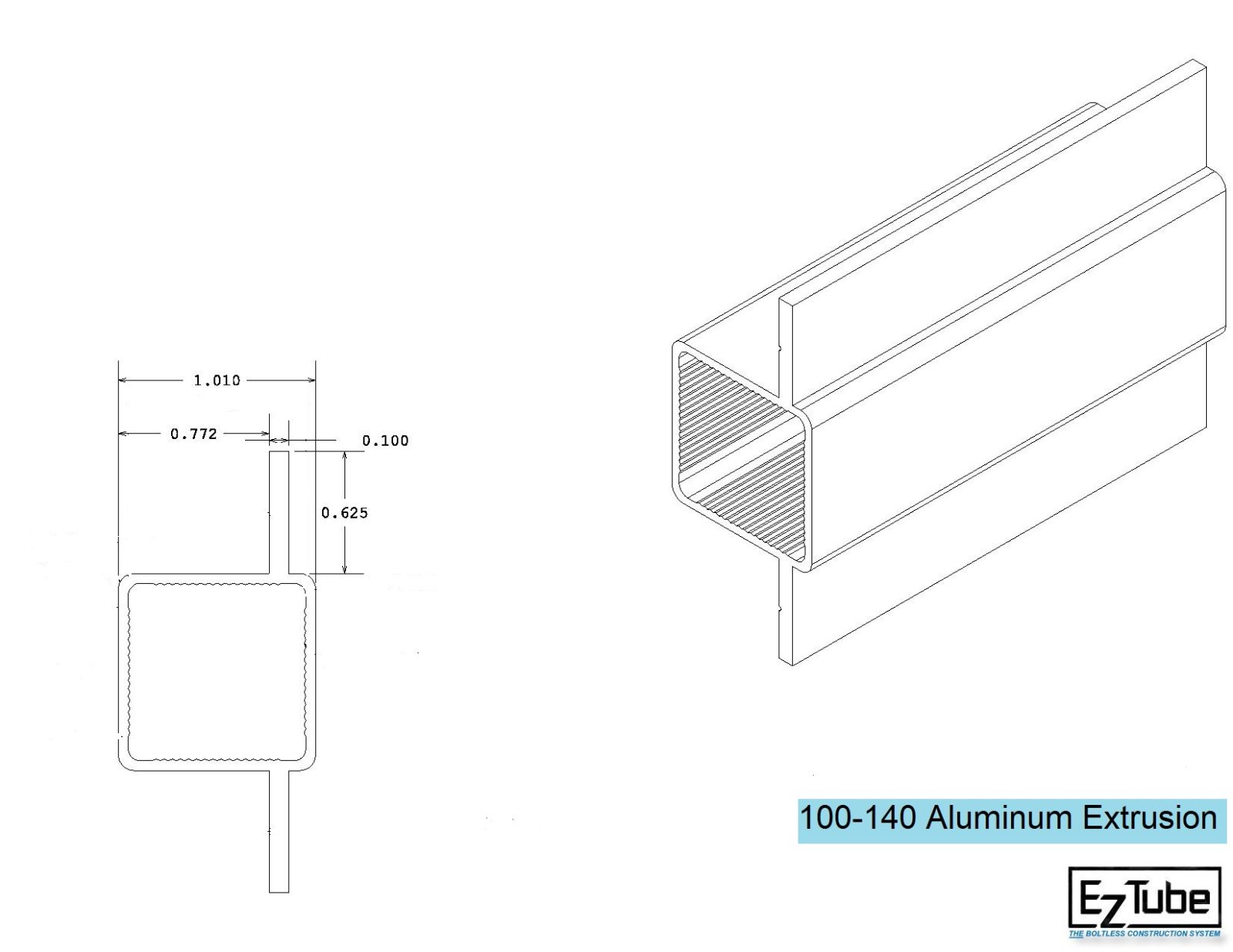

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

100-140

You may also like…

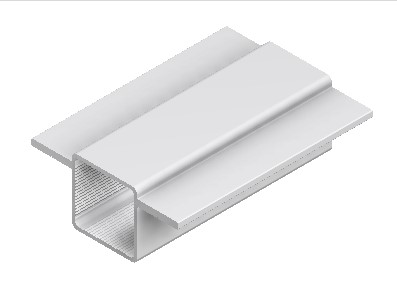

140 2-Way Double I-Fin Square Aluminum Extrusion for 3/4" Flush Panel
