100-130 Single Fin for 1/4" Recessed Panel
100-130 Matte Black Powder Coated Tube with Single Fin for 1/4" Recessed Panel

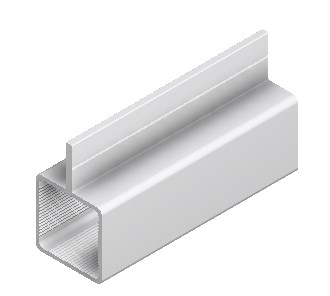

130 Single I-Fin Square Aluminum Extrusion for 1/4″ Recessed Panel

$13.98 – $31.95

Single Fin Aluminum Extrusion for 1/4″ Recessed Panel
Standard Lengths: 48 & 94 Inches (98 inches available)

Custom cutting options available
Finishes Available: Black, Clear Satin Anodize and Custom Colors

        Use with the following extrusions:

        100-100, 100-160 , 100-190

        Assembles with all Connectors

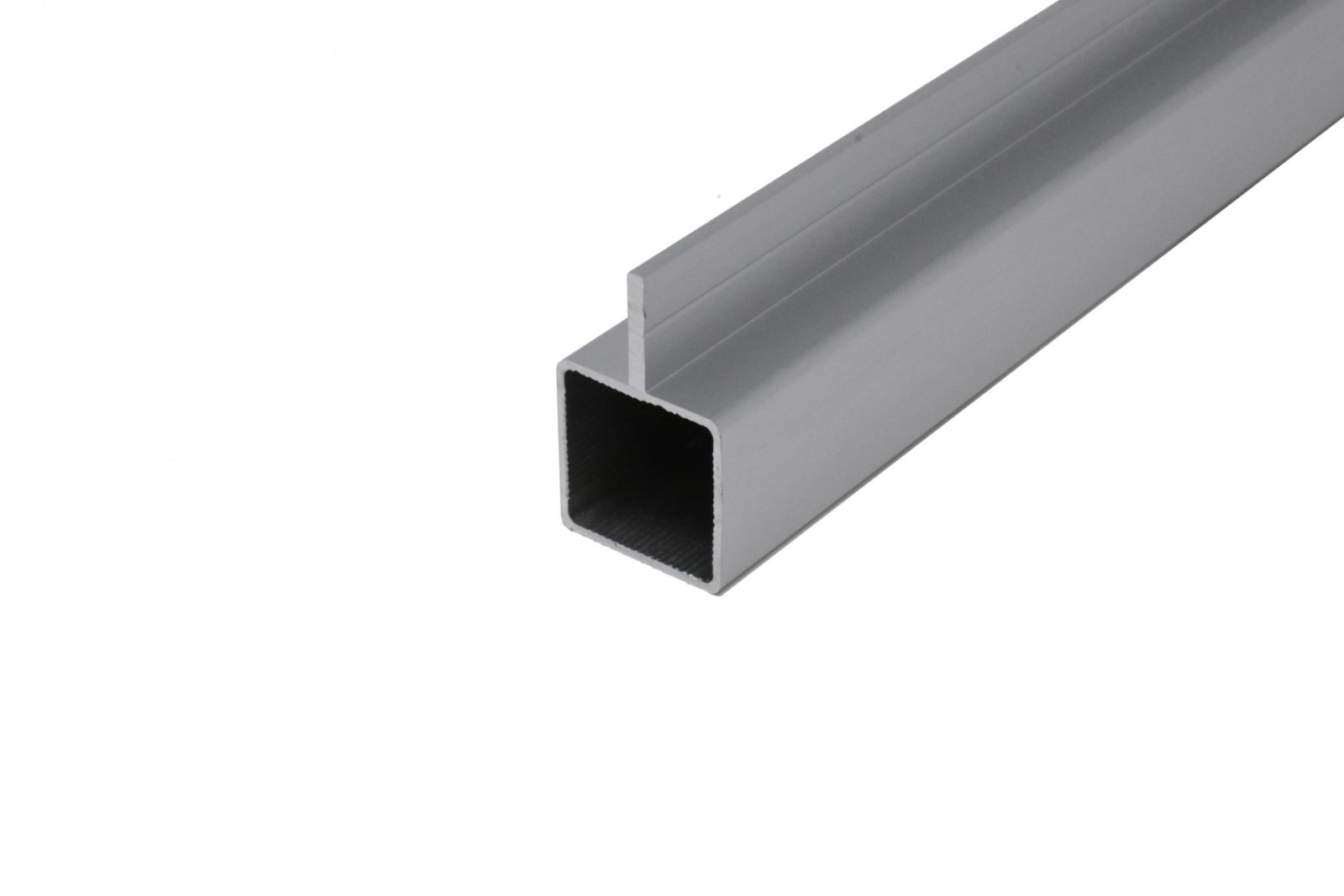

Satin Silver Anodized

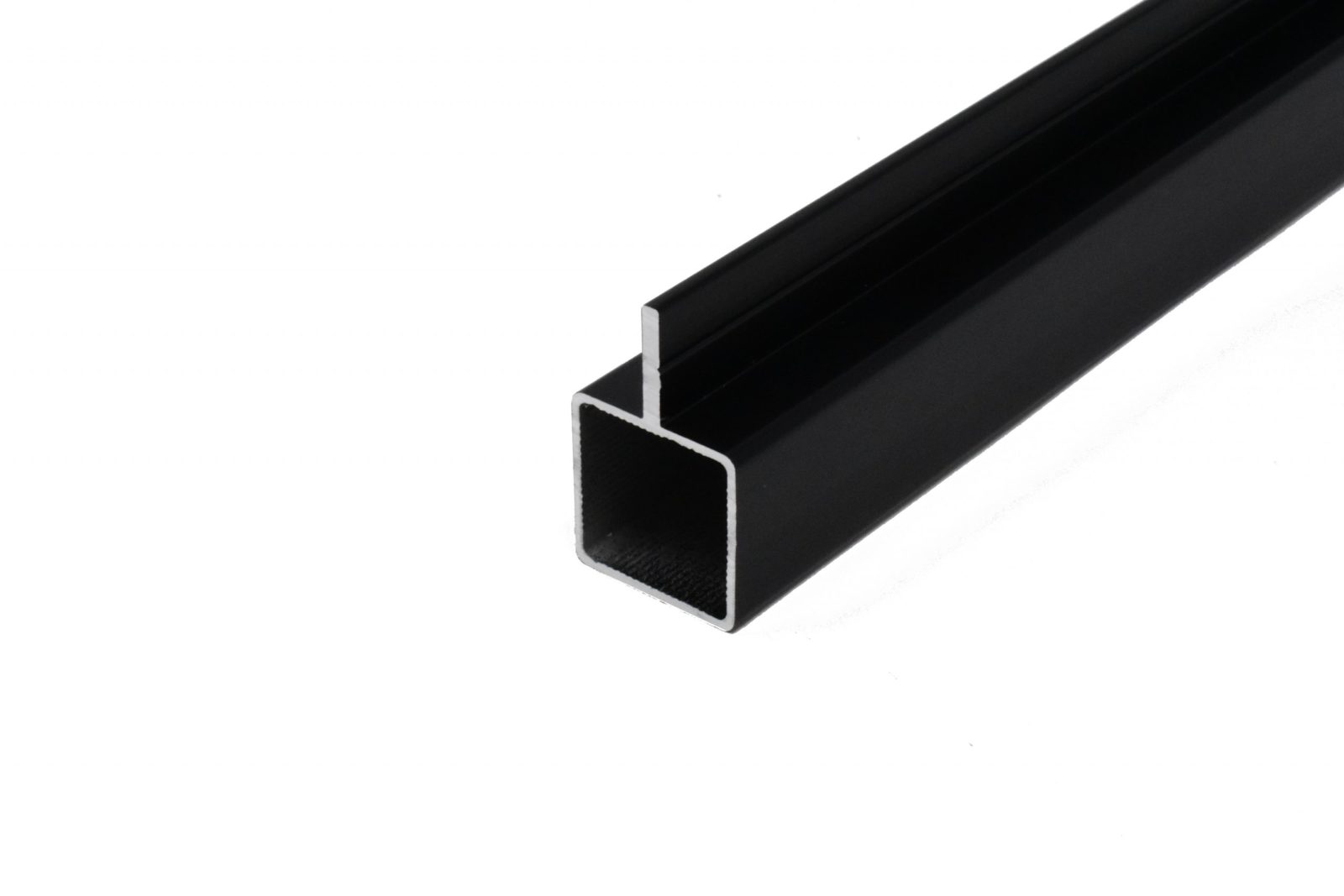

Matte Black Powder Coated
Gloss White Powder Coated
Clear

For use with our snap-fit Quick-Release connectors

# of cut pieces per tube

Length of custom cuts
Example: (5) @ 10.00″, (10) @ 6.00″

Specify the number of custom holes you would like drilled per tube.

Specify diameter and locations where you would like additional holes drilled per tube below.

Enter the number of rivet nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

The number of riv nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

Please specify rivet nut size and location of installation.

Quantity Discount Price
99 – 148 1% From $13.84
149 – 198 3% From $13.56
199+ 5% From $13.28
SKU: 100-130 Categories: ,

Single Fin Aluminum Extrusions

Single Fin for 1/4″ Recessed Panel

  • 6063 T-5 Aluminum
  • Size: 1.00″ Square
  • Wall thickness: .050″
  • Finishes Available: Clear Satin Anodized, Black Powder Coat, or Custom Color.
  • Custom Cut lengths available
  • Use with the following extrusions:   100-100, 100-160 , 100-190
  • Assembles with all Connectors



Additional Information

Weight 2 lbs
Dimensions 94 × 1 × 1 in
Tube Color
Satin Silver Anodized

Clear Satin Silver Anodized

Matte Black Powder Coated

Matte black powder coated finish

Gloss White Powder Coated

Gloss white powder coated finish
Tube Length 48 in • 1,219.2 mm

4 feet (48 inch)/1,219.2 millimeters

, 94 in • 2,387.6 mm

94 inch (7.8 feet)/2,387.6 millimeters

, 98 in • 2,489.2 mm (Ground Oversized)

8 foot (98 inch)

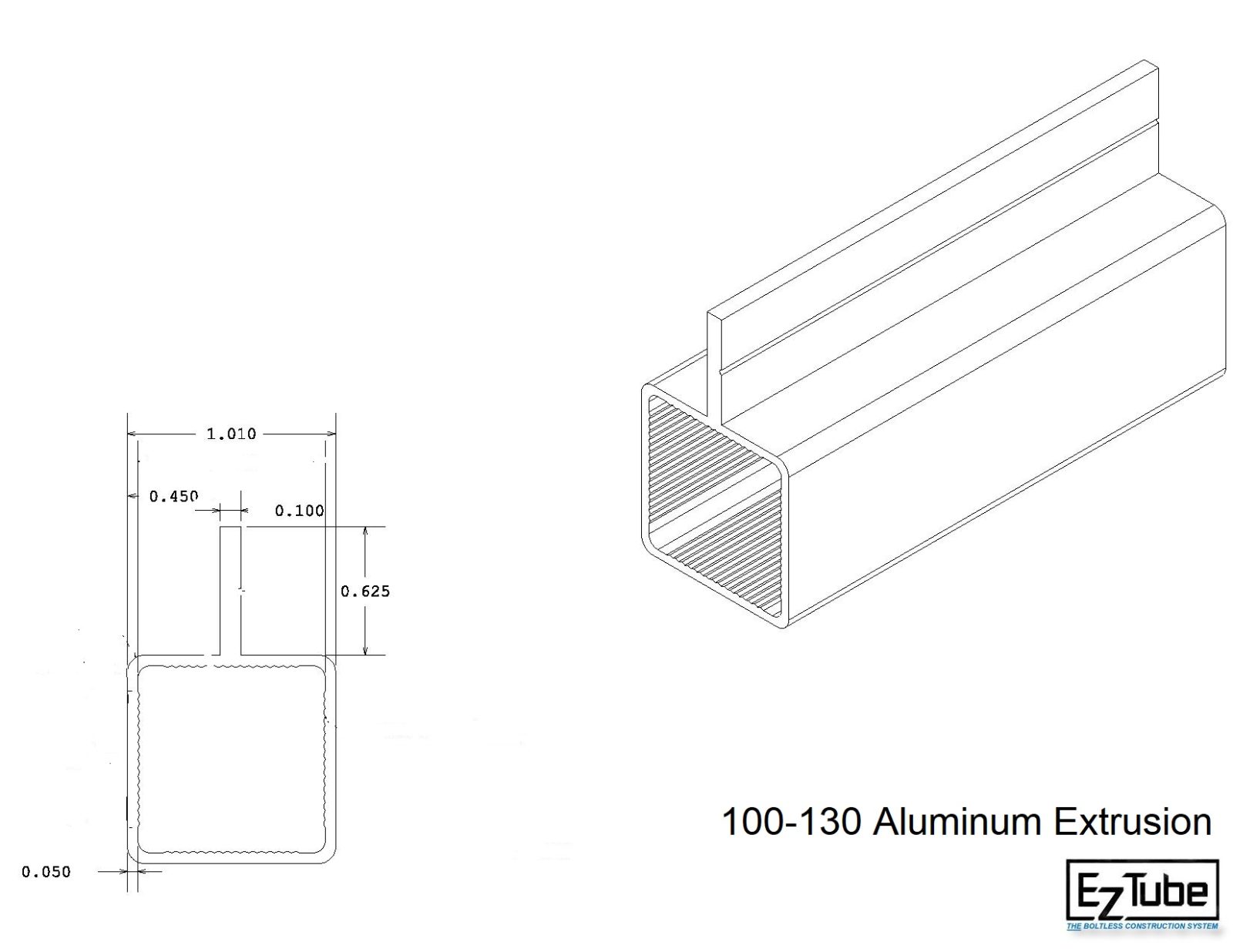

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

100-130
