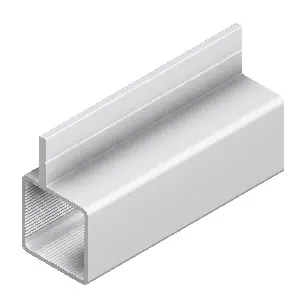

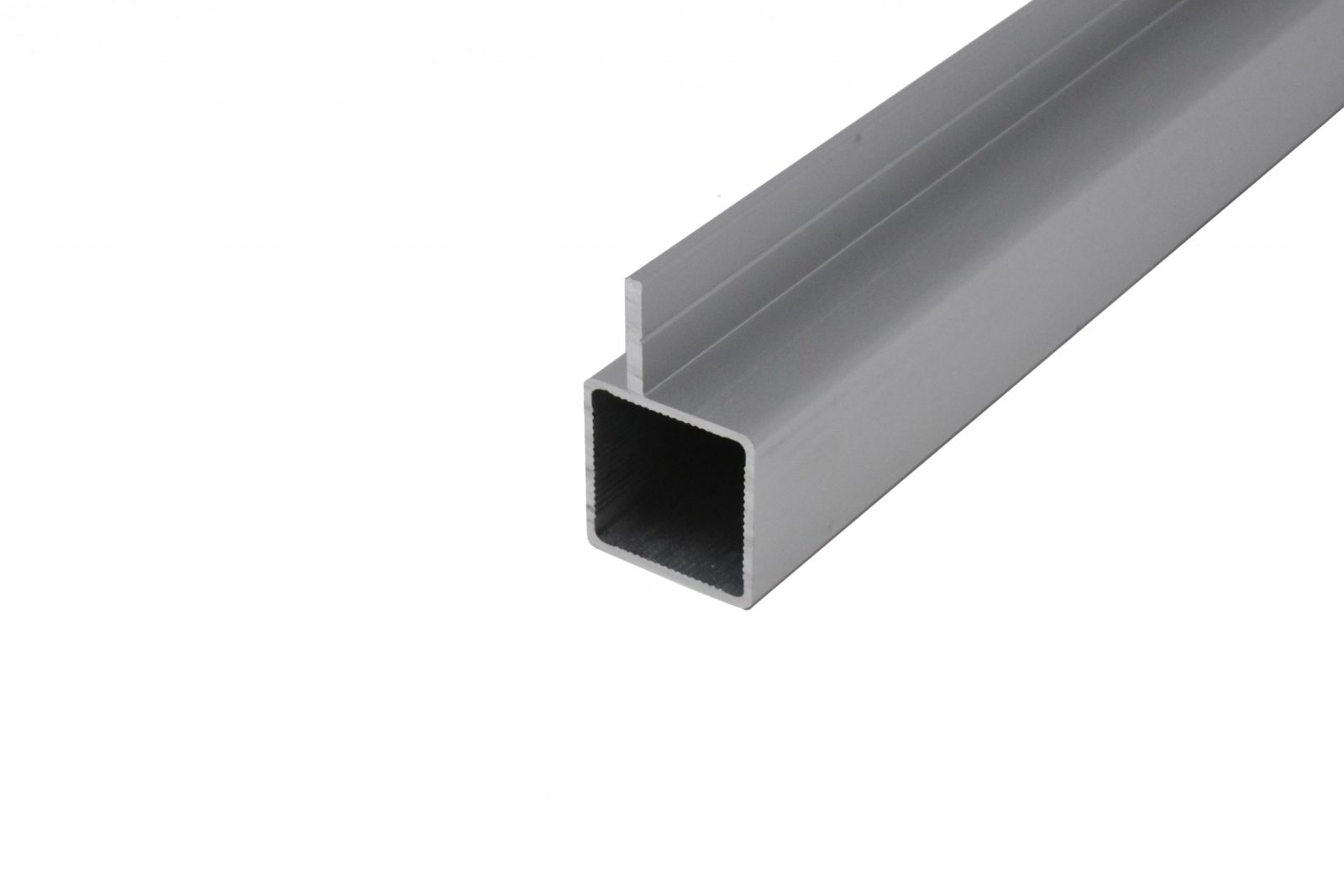

100-120 Single Fin for 1/4″ Flush Panel

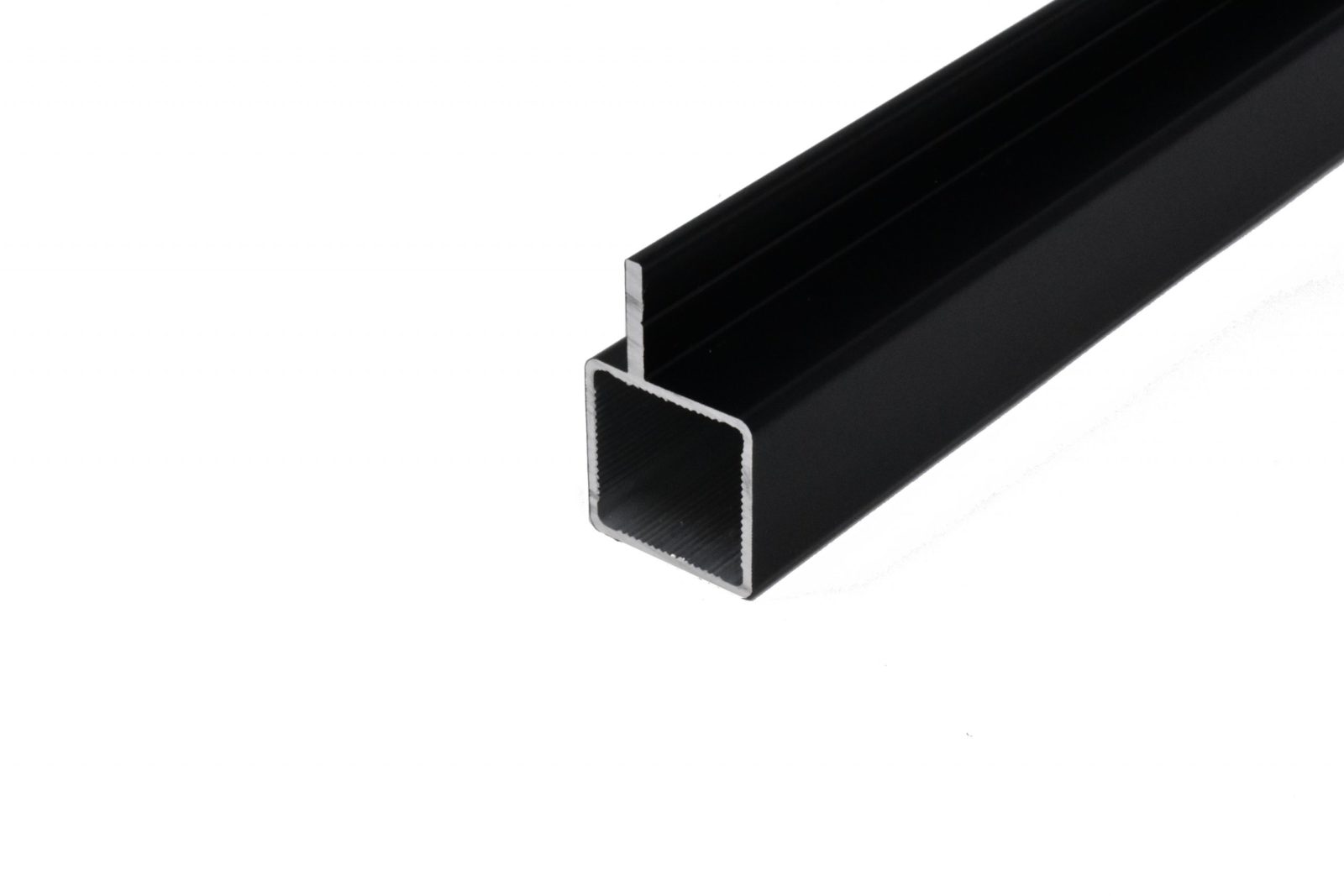

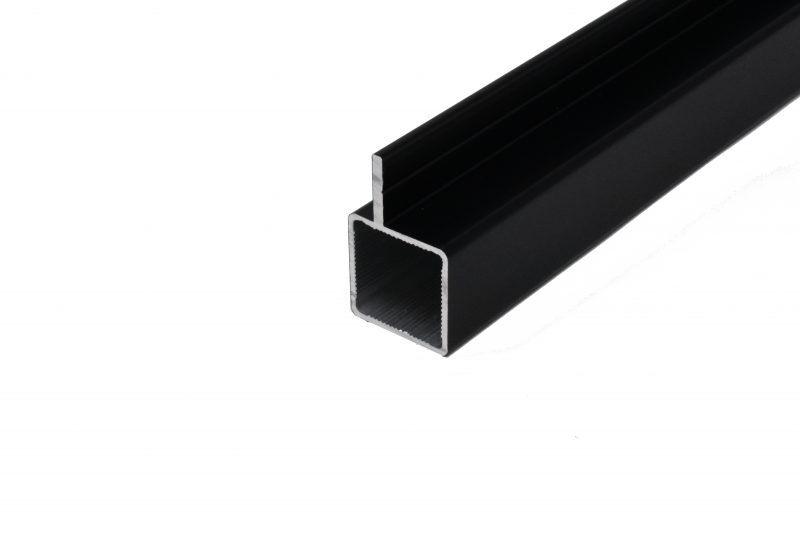

100-120-BK Single Fin Black Tube for 1/4″ Flush Panel

120 Single I-Fin Square Aluminum Extrusion for 1/4″ Flush Panel

$14.13 – $33.25



Single Fin Aluminum Extrusion
Standard Lengths: 48 & 94 Inches (98 inches available)

Custom cutting options available
Finishes Available: Black, Clear Satin Anodize, and Custom Colors

Use with the following extrusions:

100-100, 100-150, 100-180

Assembles with all Connectors



Satin Silver Anodized
Matte Black Powder Coated
Gloss White Powder Coated
Clear

For use with our snap-fit Quick-Release connectors

# of cut pieces per tube

Length of custom cuts
Example: (5) @ 10.00″, (10) @ 6.00″

Specify the number of custom holes you would like drilled per tube.

Specify diameter and locations where you would like additional holes drilled per tube below.

Enter the number of rivet nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

The number of riv nuts to be installed per item. This will be multiplied by the quantity of this line item added to your cart.

Please specify rivet nut size and location of installation.

Quantity Discount Price
99 – 148 1% From $13.99
149 – 198 3% From $13.71
199+ 5% From $13.42
SKU: 100-120 Categories: ,

Single Fin Aluminum Extrusions

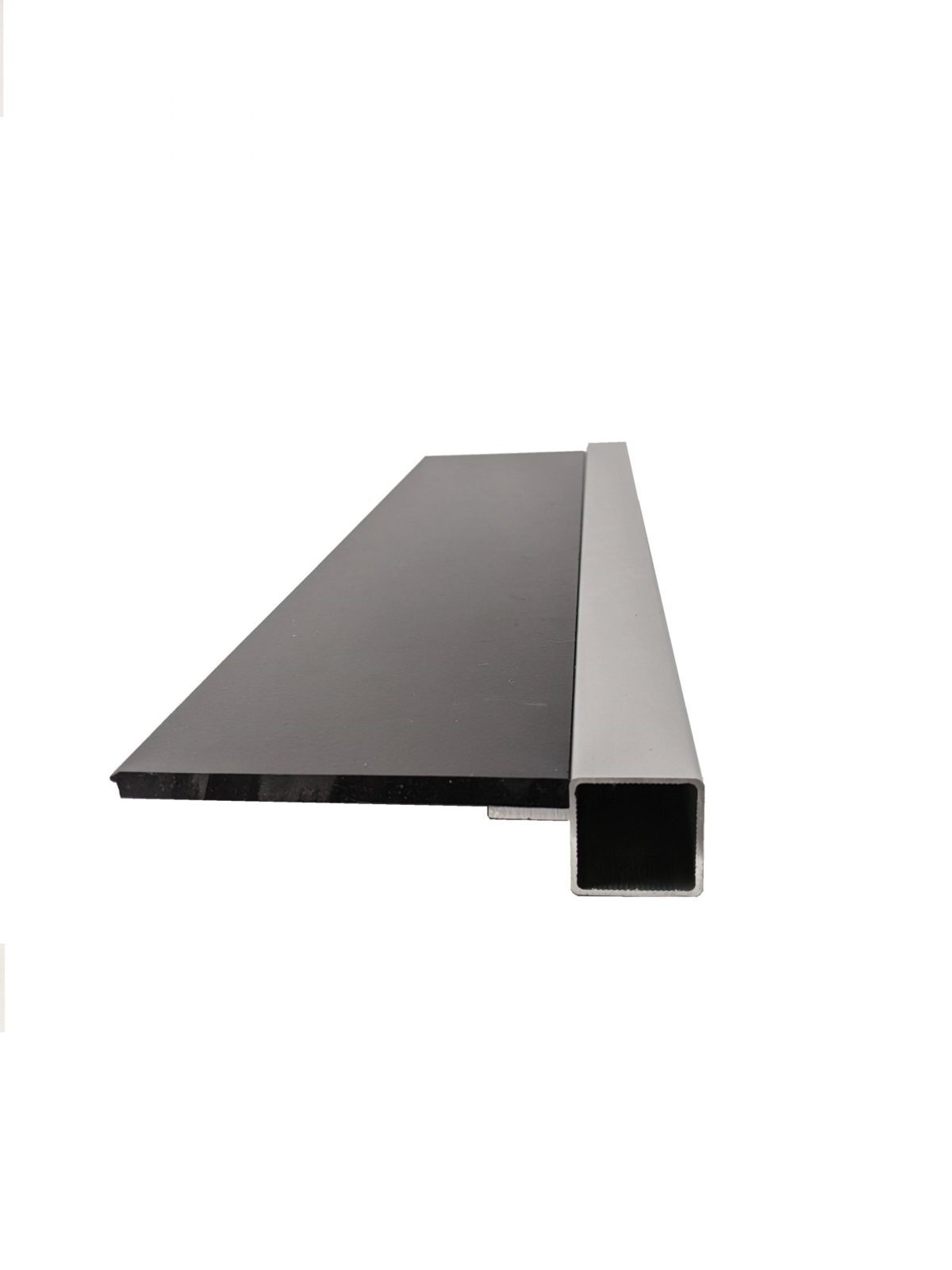

Single Fin for 1/4″ Flush Panel

  • 6063 T-5 Aluminum
  • Size: 1.00″ x 1.00″
  • Wall Thickness: .050″
  • Finishes Available: Clear Satin Anodized, Black Powder Coat, or Custom Color.
  • Use with the following extrusions:  100-100, 100-150,100-180
  • Assemble with Connectors

Additional Information

Weight 2 lbs
Dimensions 94 × 1 × 1 in
Tube Color
Satin Silver Anodized

Clear Satin Silver Anodized

Matte Black Powder Coated

Matte black powder coated finish

Gloss White Powder Coated

Gloss white powder coated finish
Tube Length 48 in • 1,219.2 mm

4 feet (48 inch)/1,219.2 millimeters

, 94 in • 2,387.6 mm

94 inches (7.8 feet)/2,387.6 millimeters

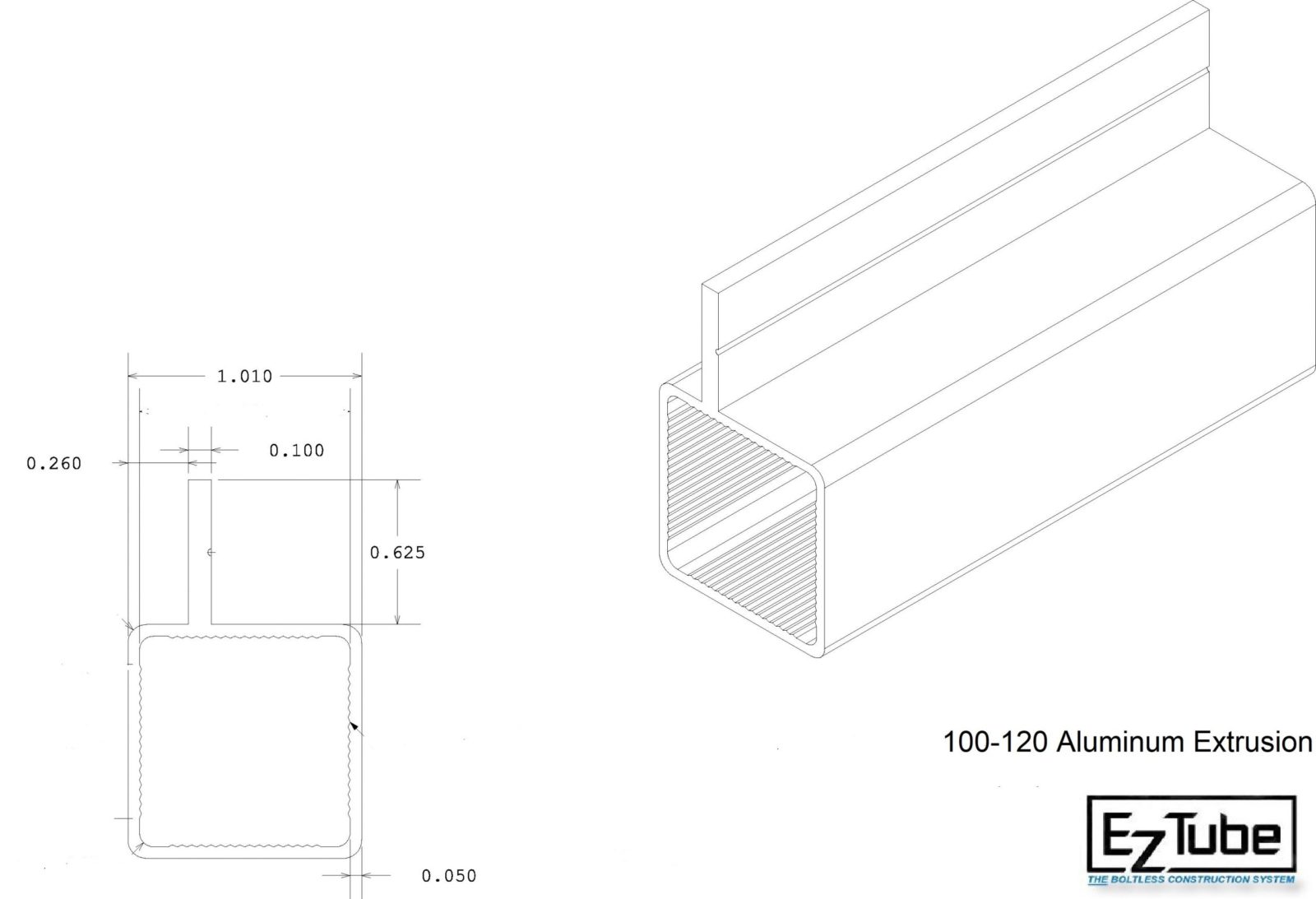

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.
