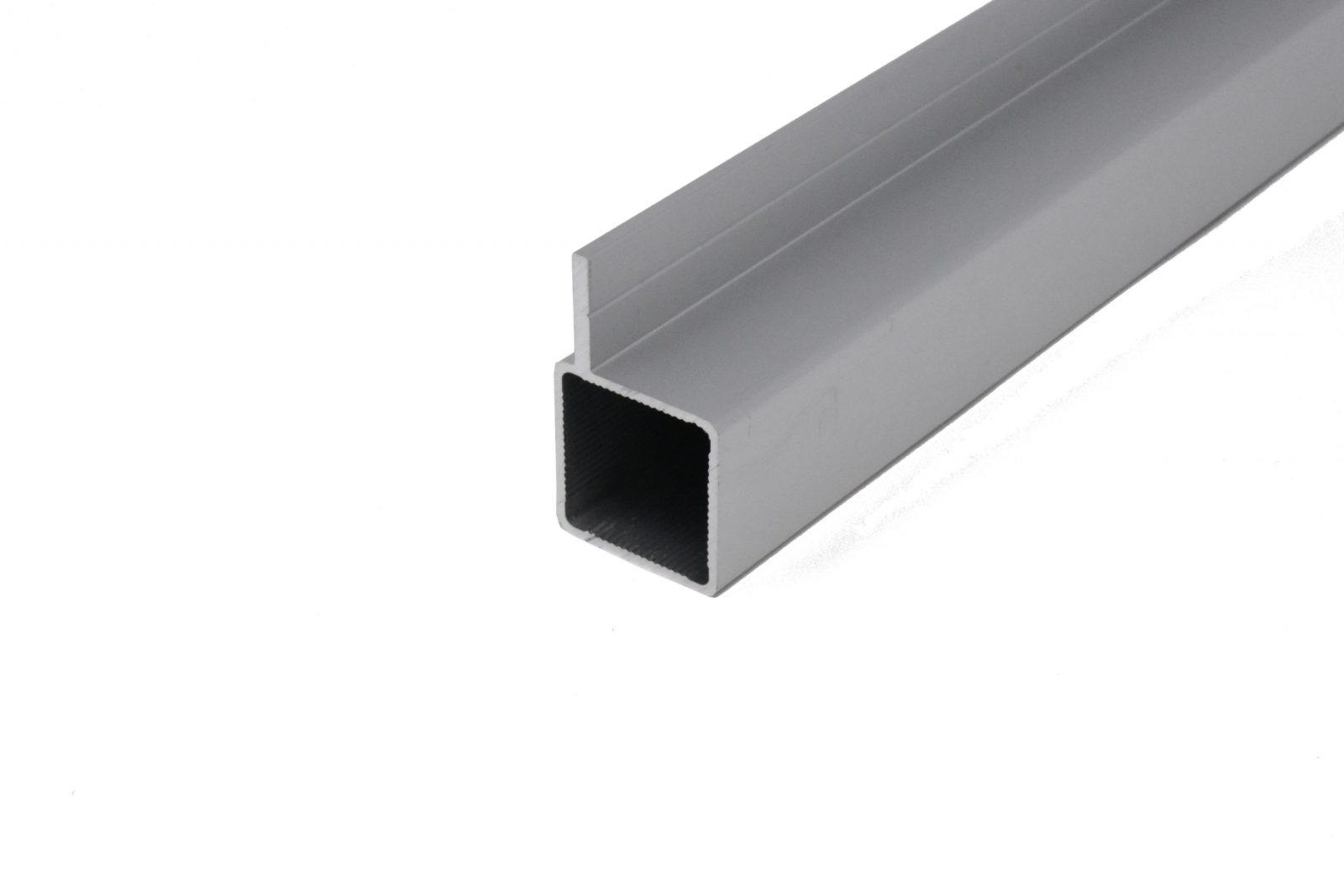

100-110 Single Fin Square Aluminum Extrusion Tube for 3/4″ Flush Panel 1.00" by EZTube for Industrial Supply

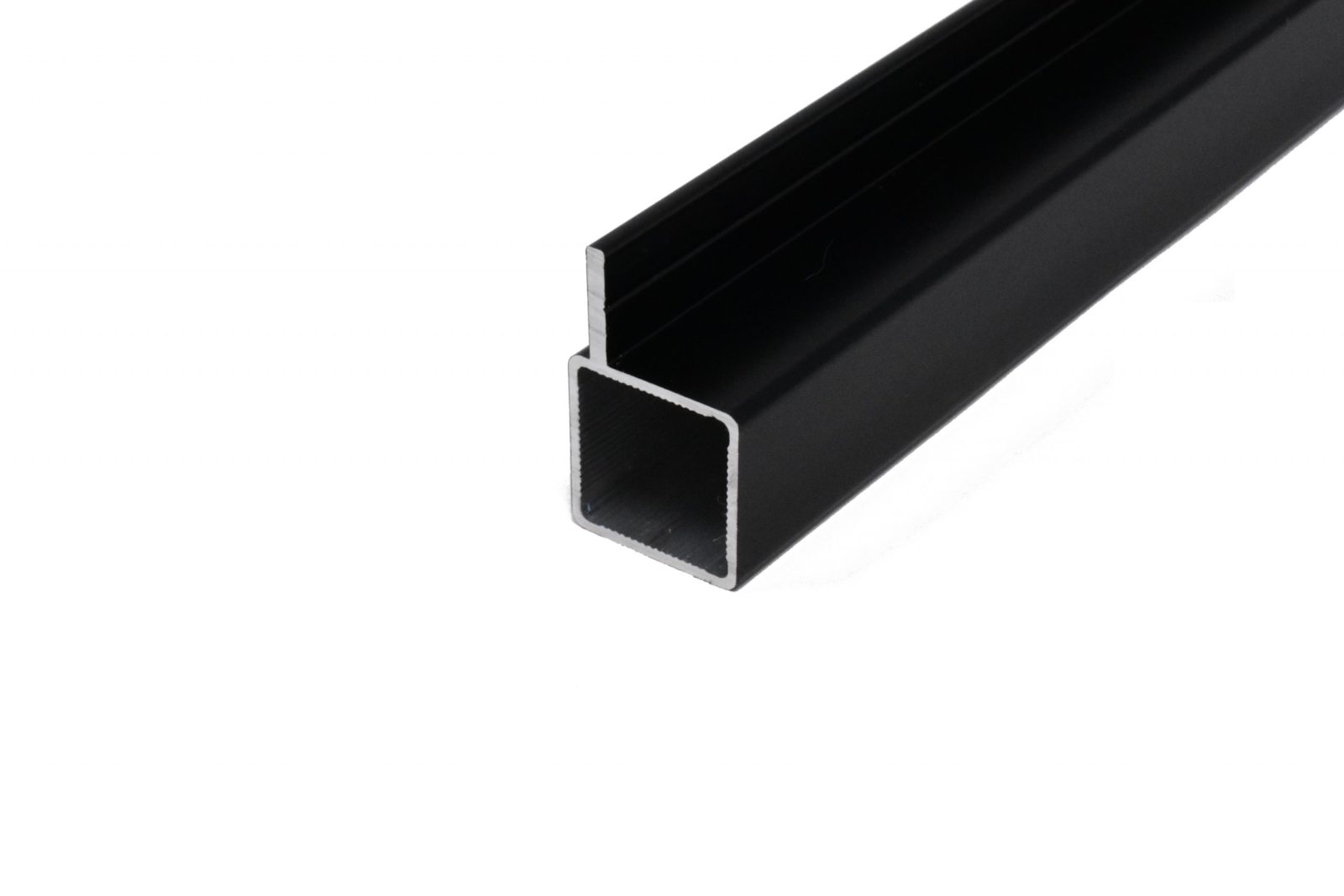

100-110 Black Single Fin Square Aluminum Extrusion Tube for 3/4″ Flush Panel 1.00" by EZTube for Industrial Supply

110 Single I-Fin Square Aluminum Extrusion for 3/4″ Flush Panel

$12.98 – $33.00

SINGLE FIN FOR 3/4″ PANEL FLUSH ALUMINUM EXTRUSION
Standard Lengths: 48 inches, 94 inches, & custom cut lengths; up to 98 inches available
Finishes Available: Black, Clear Satin Anodized, and Custom Colors

Use with the following extrusions:

100-100, 100-140, 100-170

Assembles with all Connectors

Tube Color	Satin Silver Anodized Matte Black Powder Coated Gloss White Powder Coated
Tube Length

Clear

Quantity	Discount	Price
99 – 148	1%	From $12.85
149 – 198	3%	From $12.59
199+	5%	From $12.33

SKU: 100-110 Categories: Aerospace Grade Aluminum Tubes & Extrusions, Extrusions for 3/4" Panel Flush

Single Fin Aluminum Extrusions

Single Fin for 3/4″ Flush Panel Extrusion by EZTube

6063 T-5 Aluminum
Size: 1.00″ x 1.00″
Wall Thickness: .050″
Finishes Available: Clear Satin Anodized, Black Powder Coat, or Custom Color.
Use with the 100-100, 100-140 , and 100-170 Aluminum Extrusions for 3/4″ Flush Panels
Assembles with all Connectors

Single Fin for 3/4″ Flush Panel

Weight	2 lbs
Dimensions	94 × 1 × 1 in
Tube Color	Satin Silver Anodized Clear Satin Silver Anodized Matte Black Powder Coated Matte black powder coated finish Gloss White Powder Coated Gloss white powder coated finish
Tube Length	48 in • 1,219.2 mm 4 feet (48 inch)/1,219.2 millimeters , 94 in • 2,387.6 mm 94 inches (7.8 feet)/2,387.6 millimeters , 98 in • 8 ft • 2,489.2 mm (Oversized Shipping Surcharge) 8 feet (98 inch)/2,489.2 millimeters Incurs oversize shipping surcharge

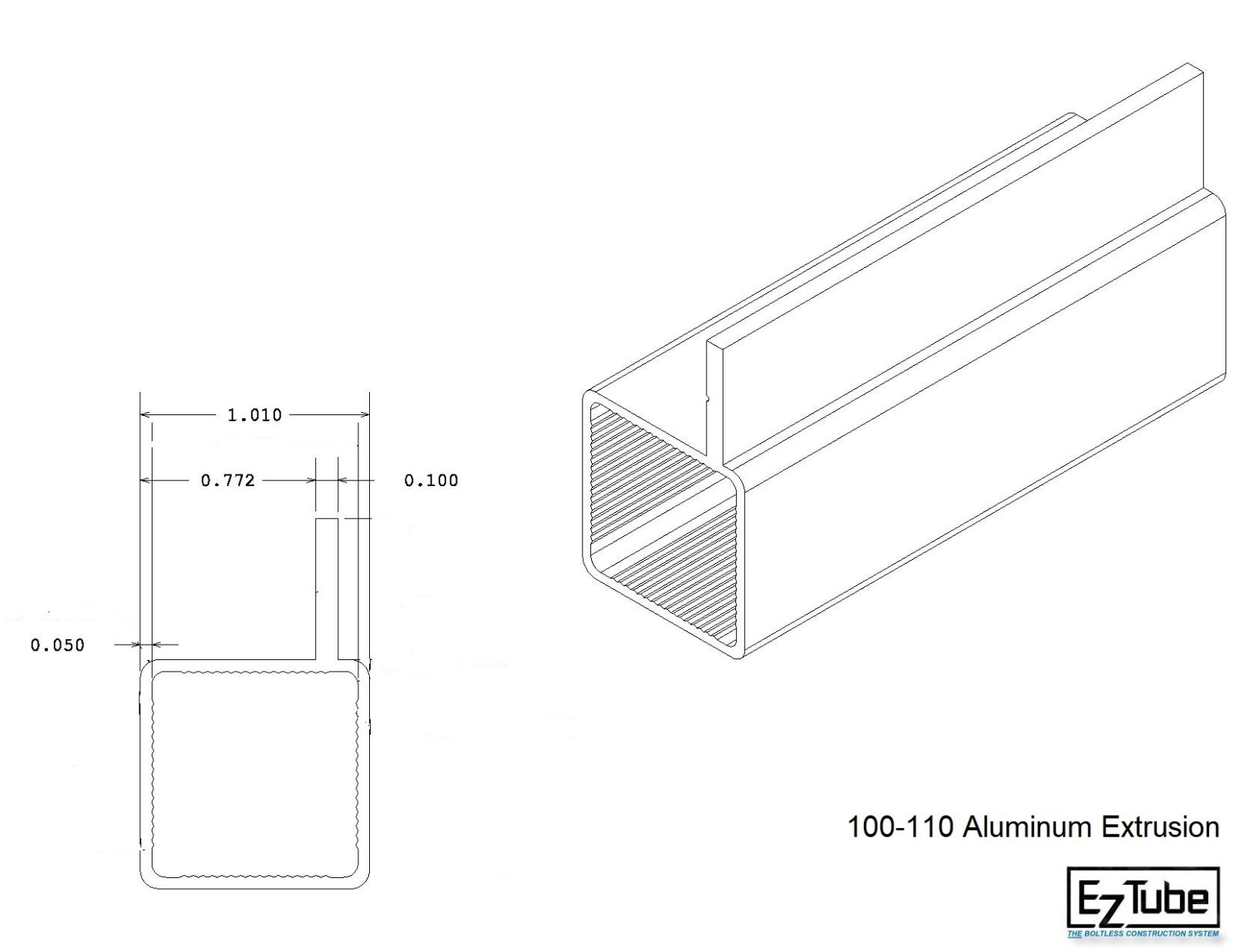

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

110 Single I-Fin Square Aluminum Extrusion for 3/4" Flush Panel
