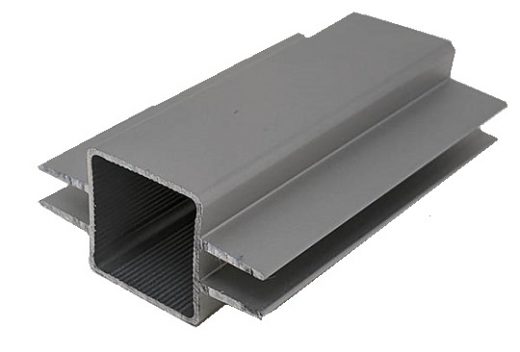

100-273-S 2-Way Captive Fin Centered for 1/4″ Panel

Name: 100-273-S 2-Way Captive Fin Centered for 1/4" Panel
SKU: 100-173-S
Availability: InStock

$17.00 – $41.00

Standard Lengths: 48 & 94 Inches (98 Inches Available)

Custom cutting options available
Finishes Available: Black, Clear Satin Anodize and Custom Colors

Use with the following extrusions:

100-100, 100-255-S, 100-263-S, 100-283-S, 100-290-S

Assembles with all Connectors

Length & Color

Clear

Quick-Release Holes

If you would like to assemble and disassemble your EZTube creation with ease, you may wish to consider having your tubes drilled for use with our line of Quick-Release connectors.

Drill Quick Release Holes – One End ($0.50)

Drill Quick Release Holes – Both Ends ($1.00)

Cuts / Pieces

Please enter the number of pieces you would like per item. This will be multiplied by the number of extrusions that you add to your cart. If you wish to purchase some extrusions with cuts and some without, please add them to your cart separately.

# of Pieces Per Item ($1.50) This must be a number!

Cutting Instructions

Please provide cutting instructions below, specifying quantities and lengths of cuts, allowing for a blade thickness of 0.125″ per cut from one piece of extrusion.

Instructions

Additional Holes

Please specify the number of additional holes you would like drilled per tube.

# of Holes Per Item ($0.25) This must be a number!

Additional Hole Instructions

Please specify diameter and locations where you would like additional holes drilled per tube.

Riv Nut Installation Options

Please enter the number of riv nuts to be installed per item. This will be multiplied by the number of extrusions that you add to your cart. If you wish to purchase some extrusions with riv nuts installed and some without, please order them separately.

# of Riv Nuts Per Item ($3.00) This must be a number!

Riv Nut Thread Size

Riv Nut Instructions

Please specify riv nut size and location of installation.

SKU: 100-173-S Category: Aluminum Extrusions

Additional Info
Drawings

Additional Information

Weight	3 lbs
Packaging Dimensions	94 × 1 × 1 in
Length & Color	48 in. length, Black, 48 in. length, Clear Satin Anodize, 94 in. length, Black, 94 in. length, Clear Satin Anodize

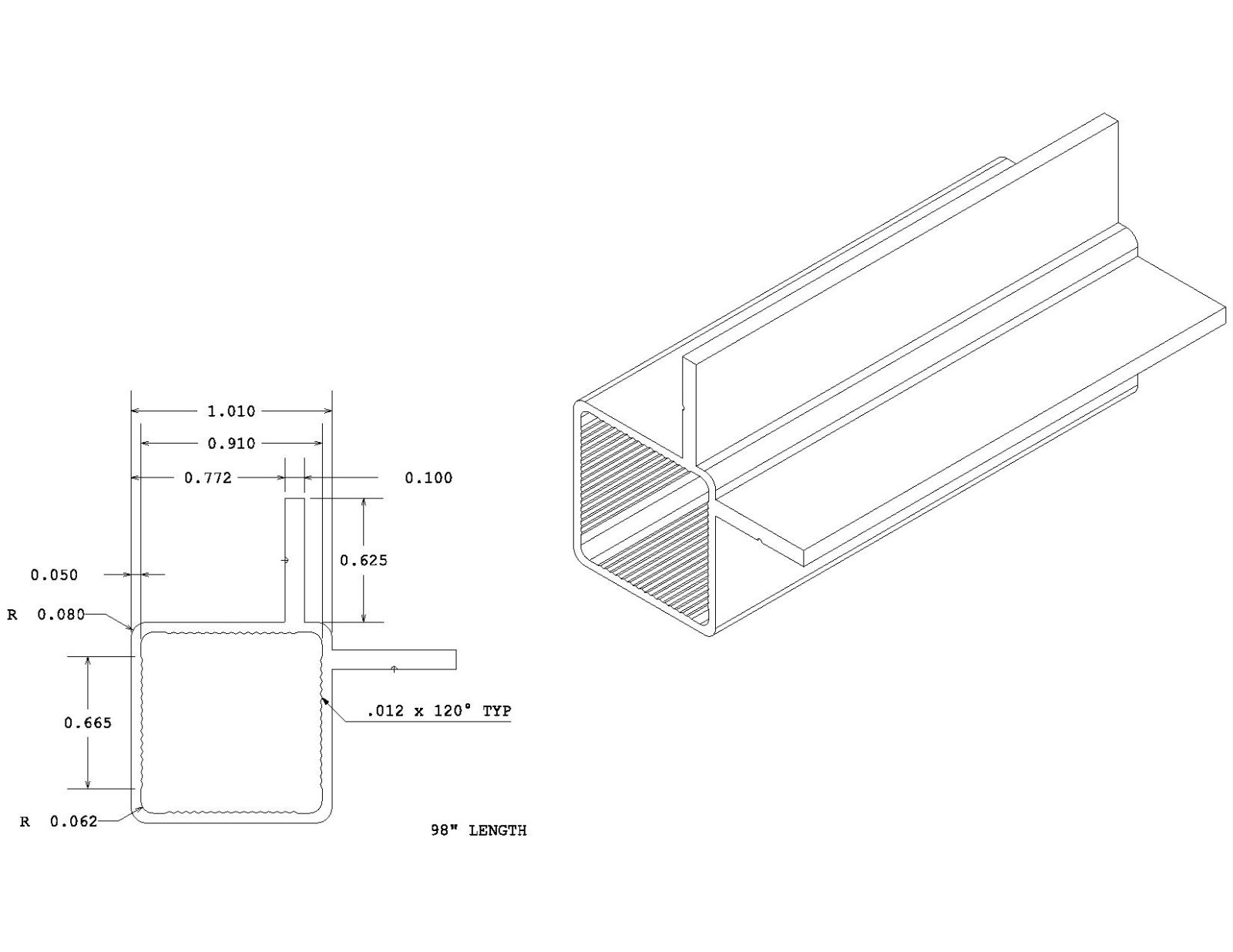

Print the drawing(s) below by clicking on it to enlarge. Then right click on the enlarged image to print.

100-170-48in.eAsm
100-170-48in.igs
100-170-48in.stp
100-170-48in.x_b
100-170-48in.x_t
100-170-48in.dwg

100-170-98in.eAsm
100-170-98in.igs
100-170-98in.stp
100-170-98in.x_b
100-170-98in.x_t
100-170-98in.dwg
